01快速入门

docker compose 部署

cd workdir mkdir -p ./mytb-data ./mytb-logs

services:
  thingsboard:
    image: thingsboard/tb-postgres
    container_name: thingsboard
    restart: always
    ports:
      - "8080:9090"
      - "7070:7070"
      - "1883:1883"
      - "5683-5688:5683-5688/udp"
    volumes:
      - ./mytb-data:/data
      - ./mytb-logs:/var/log/thingsboard

docker compose pull docker compose up -d

浏览器访问 http://domain:8080 默认用户名： tenant@thingsboard.org 默认密码： tenant

源码部署

略

添加设备

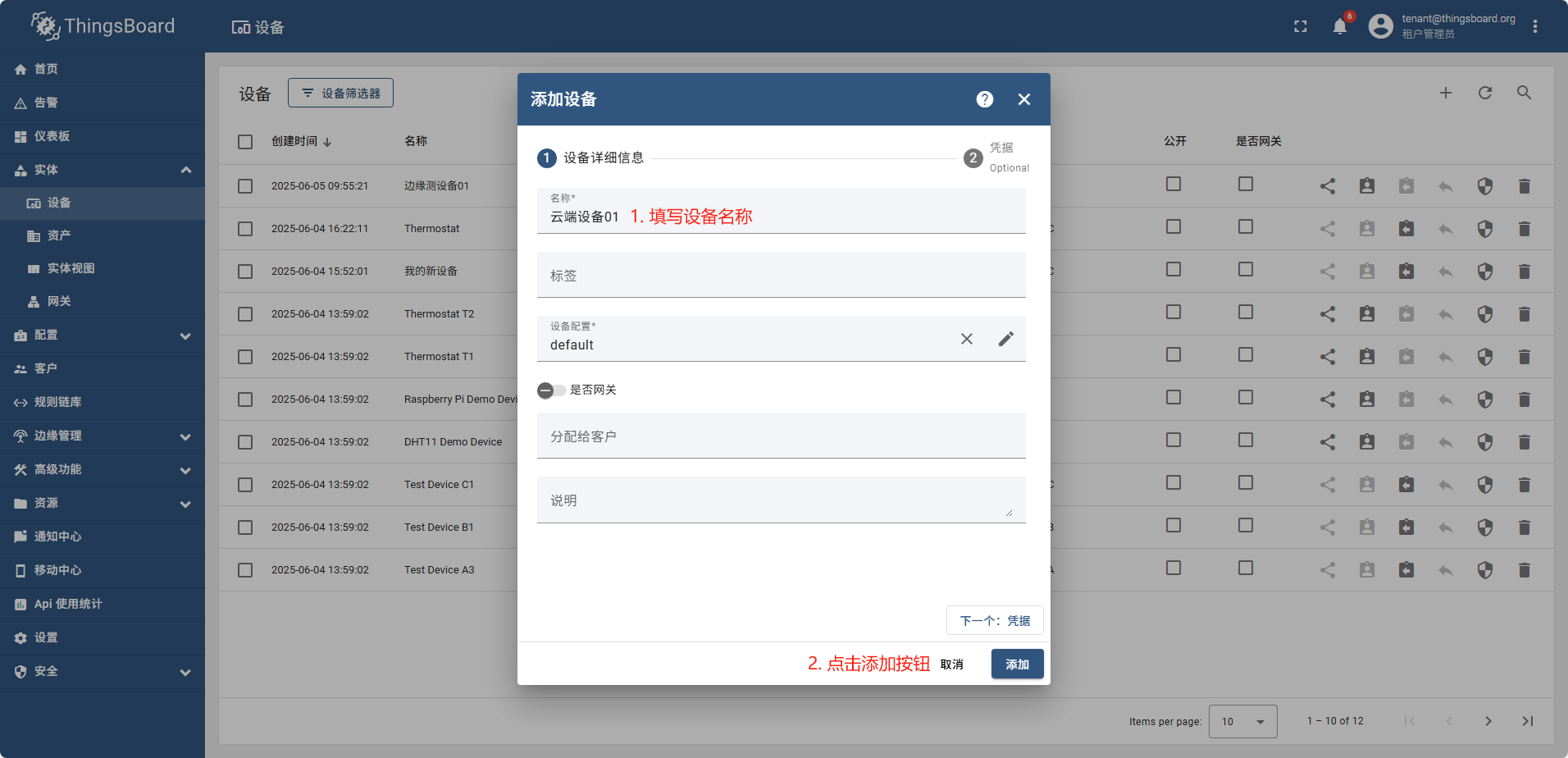

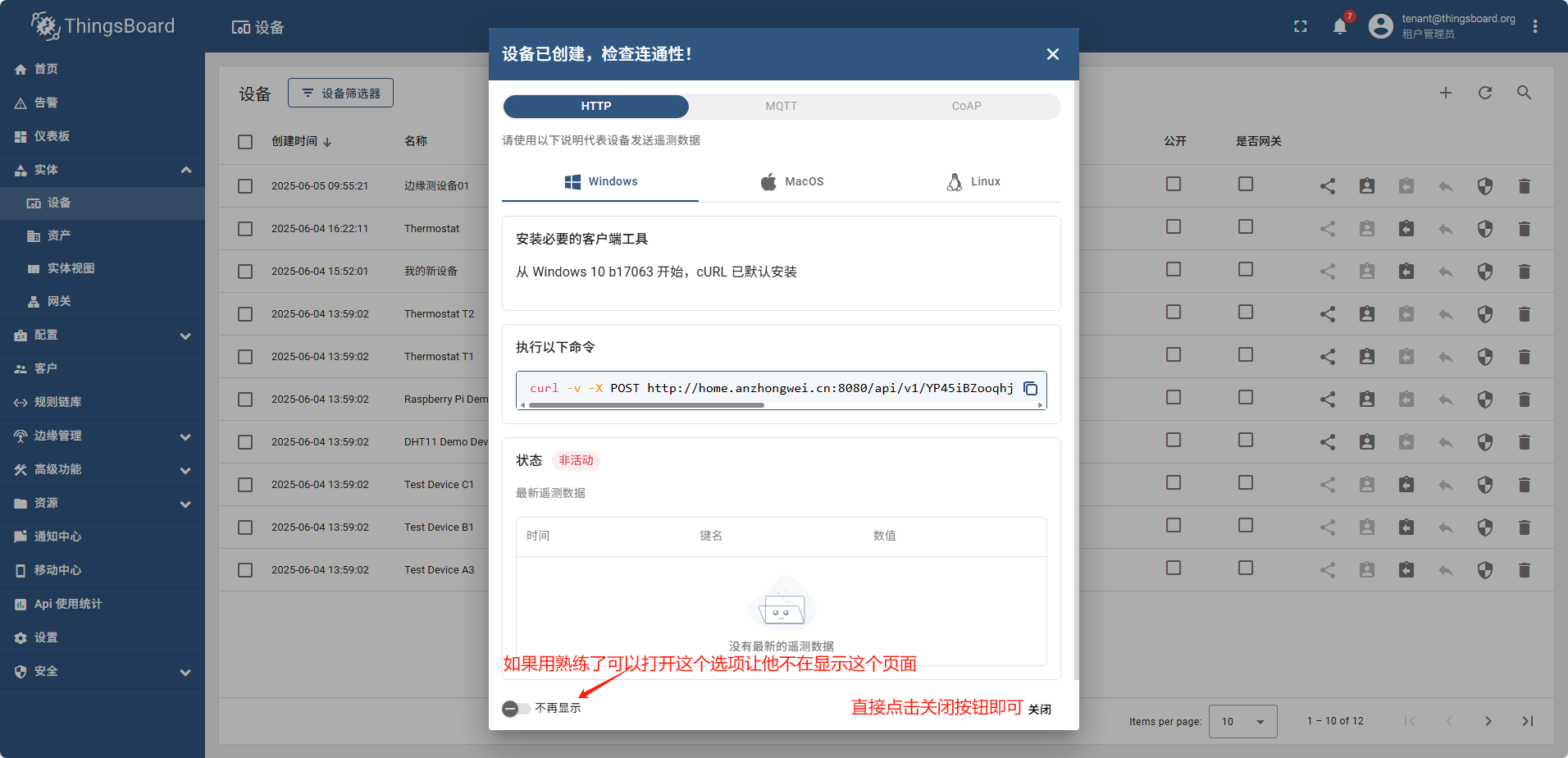

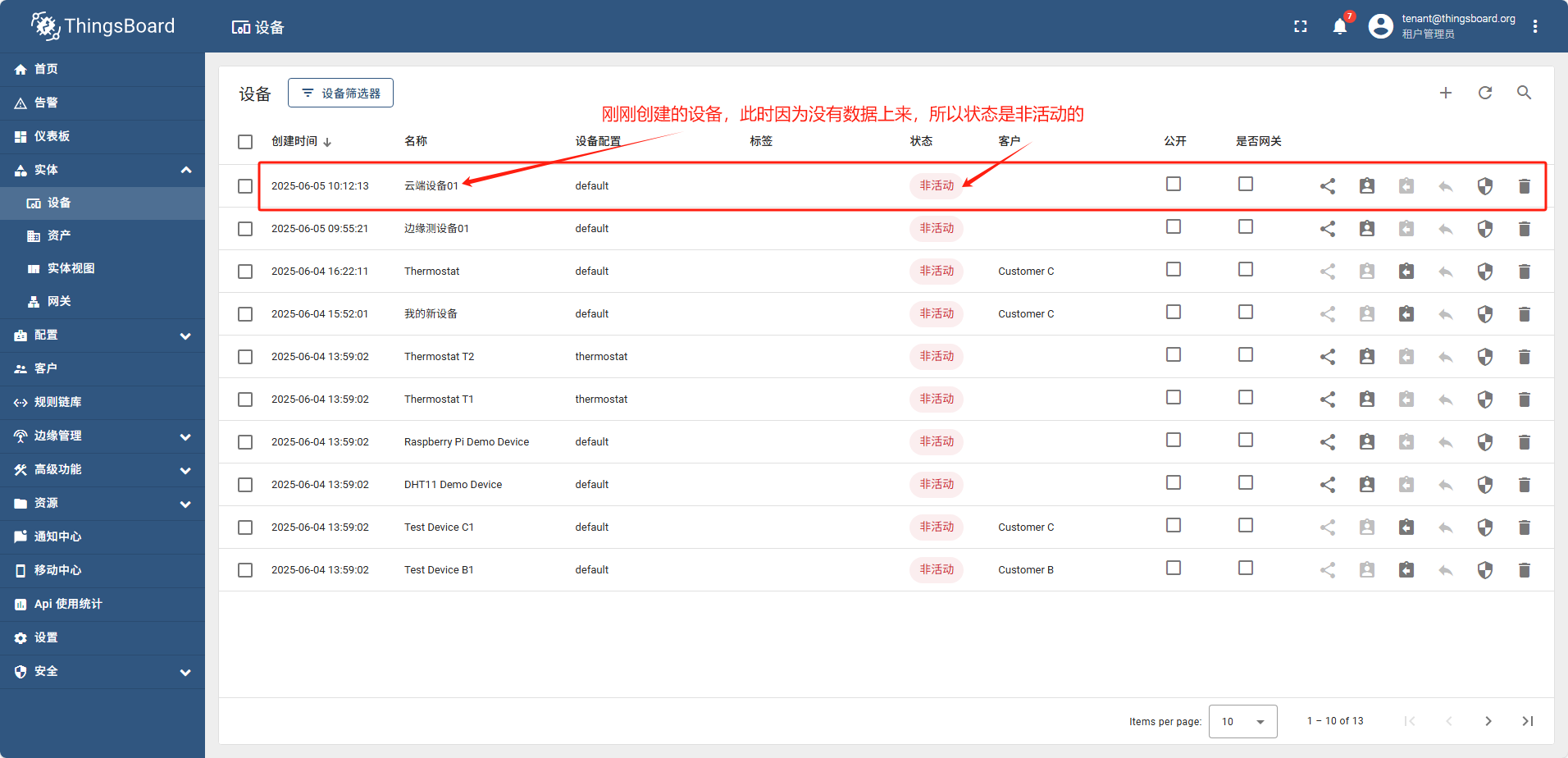

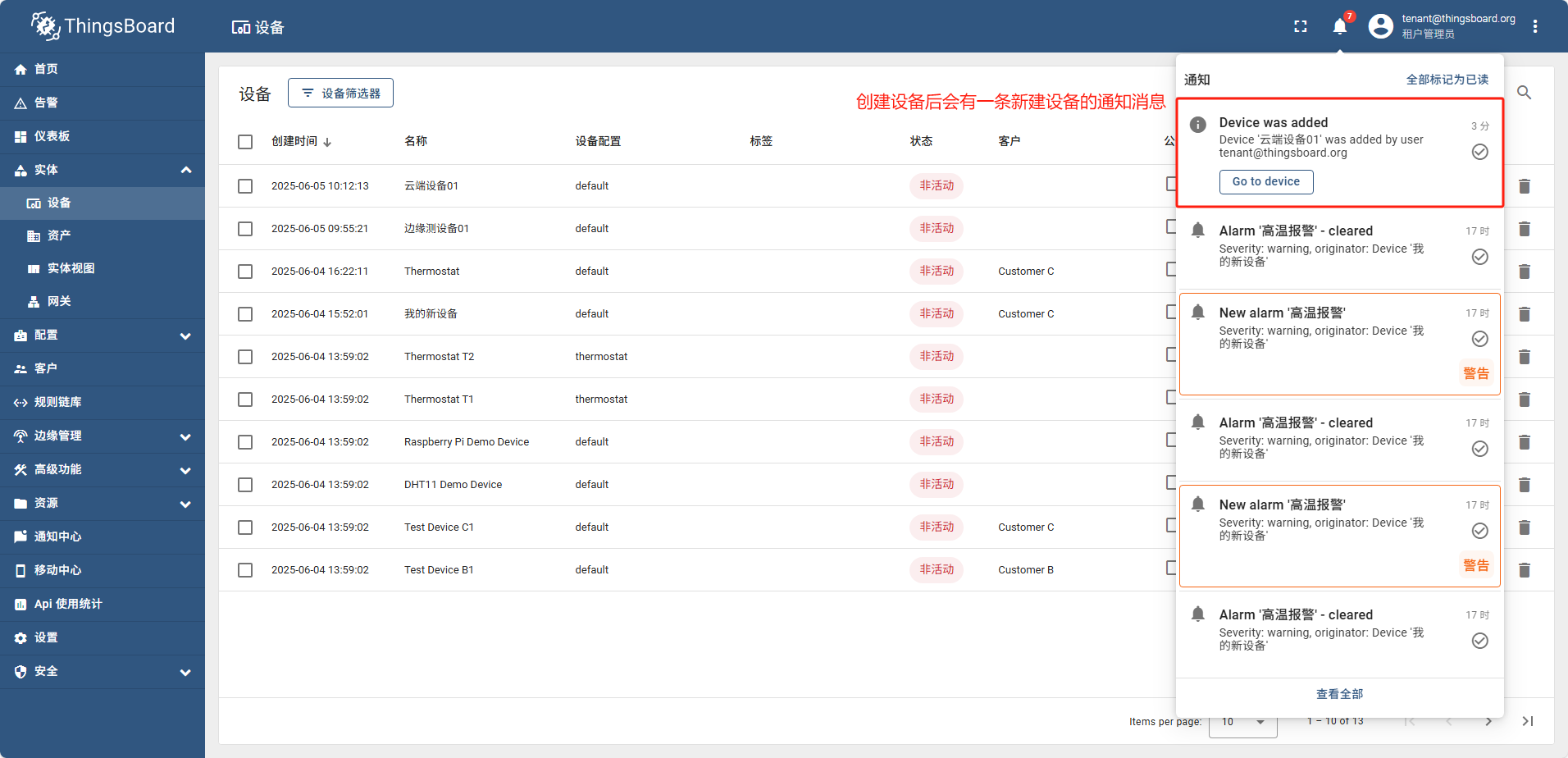

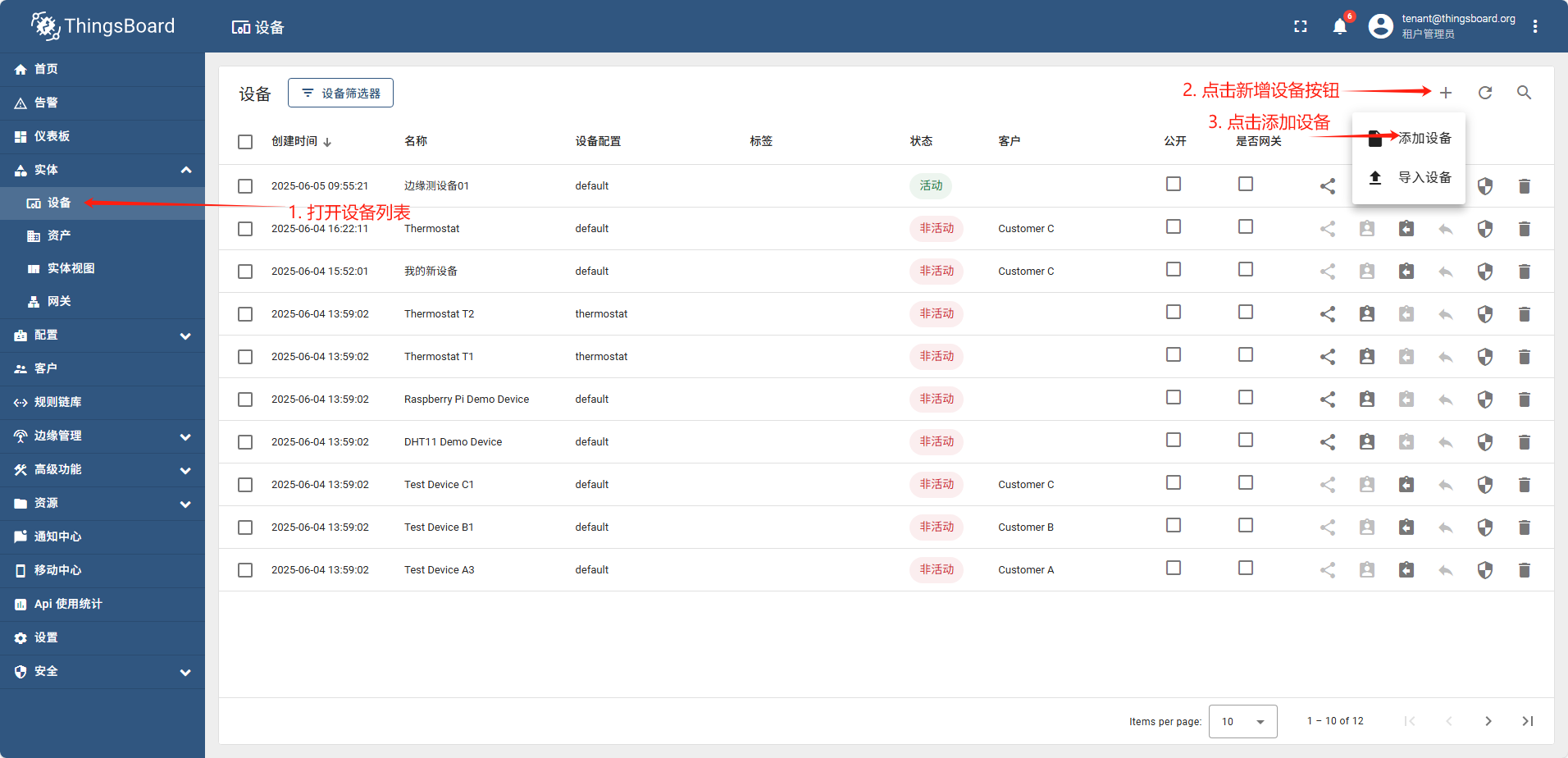

单设备添加

单设备添加完全跟图操作即可

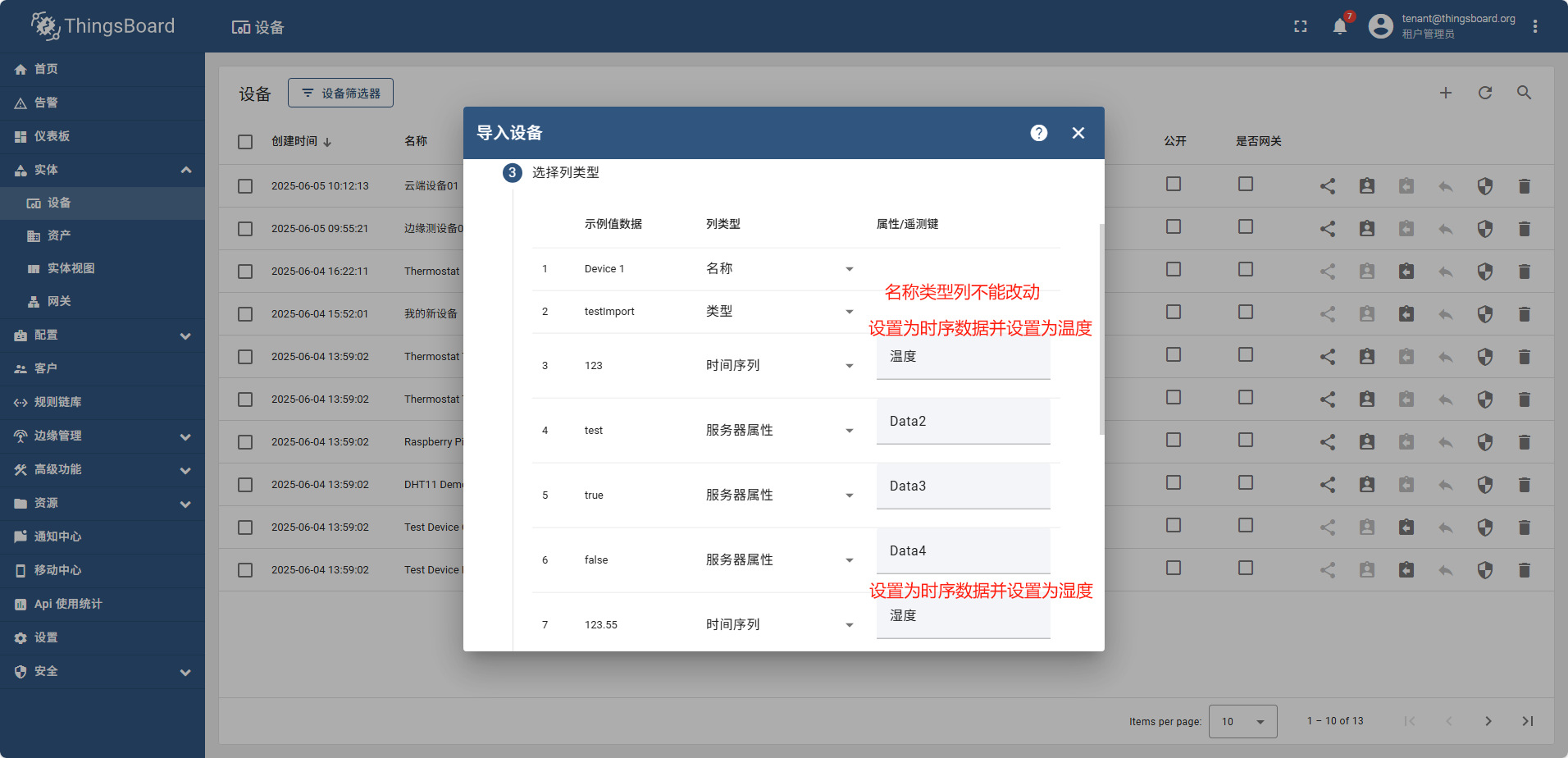

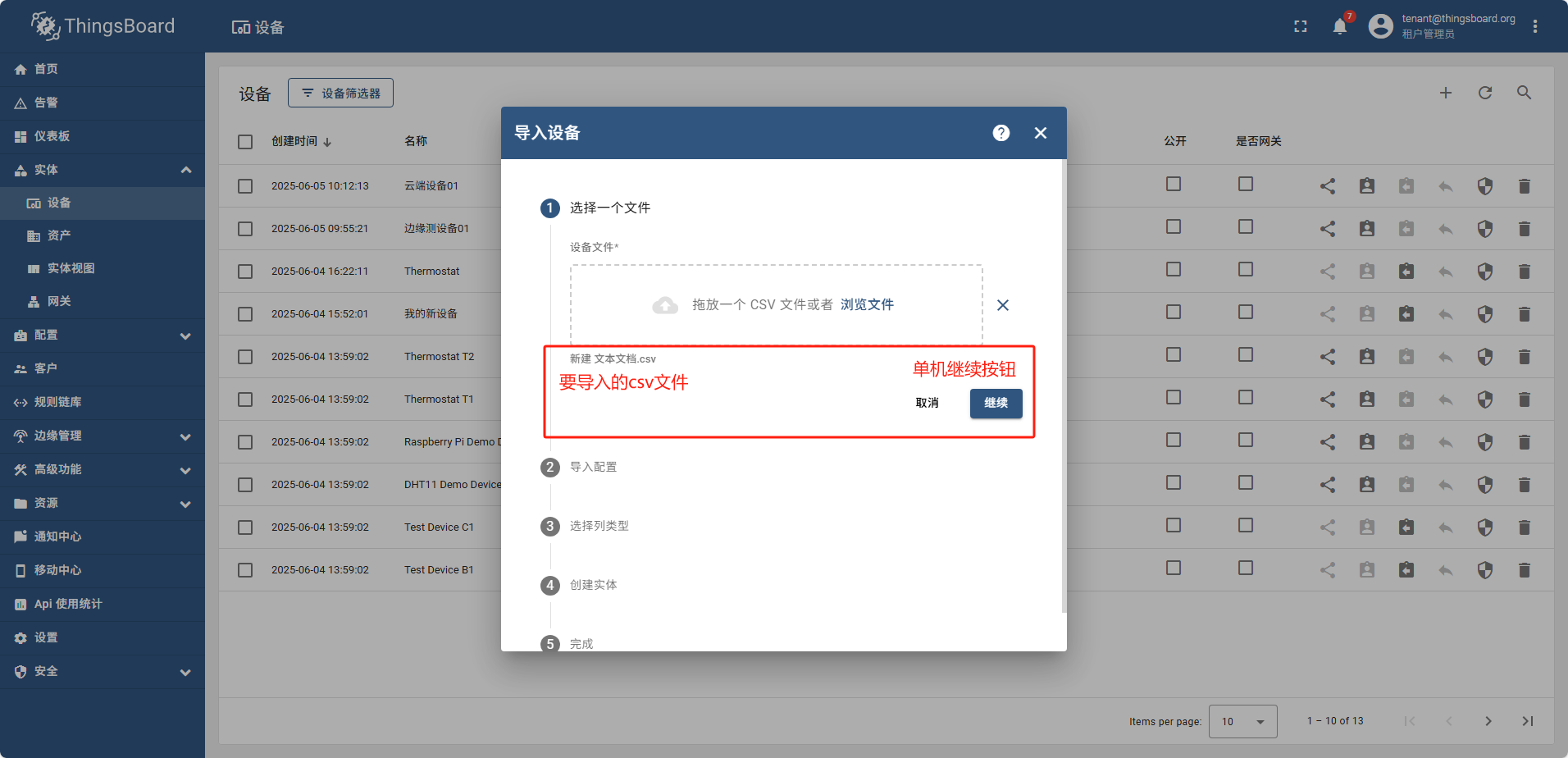

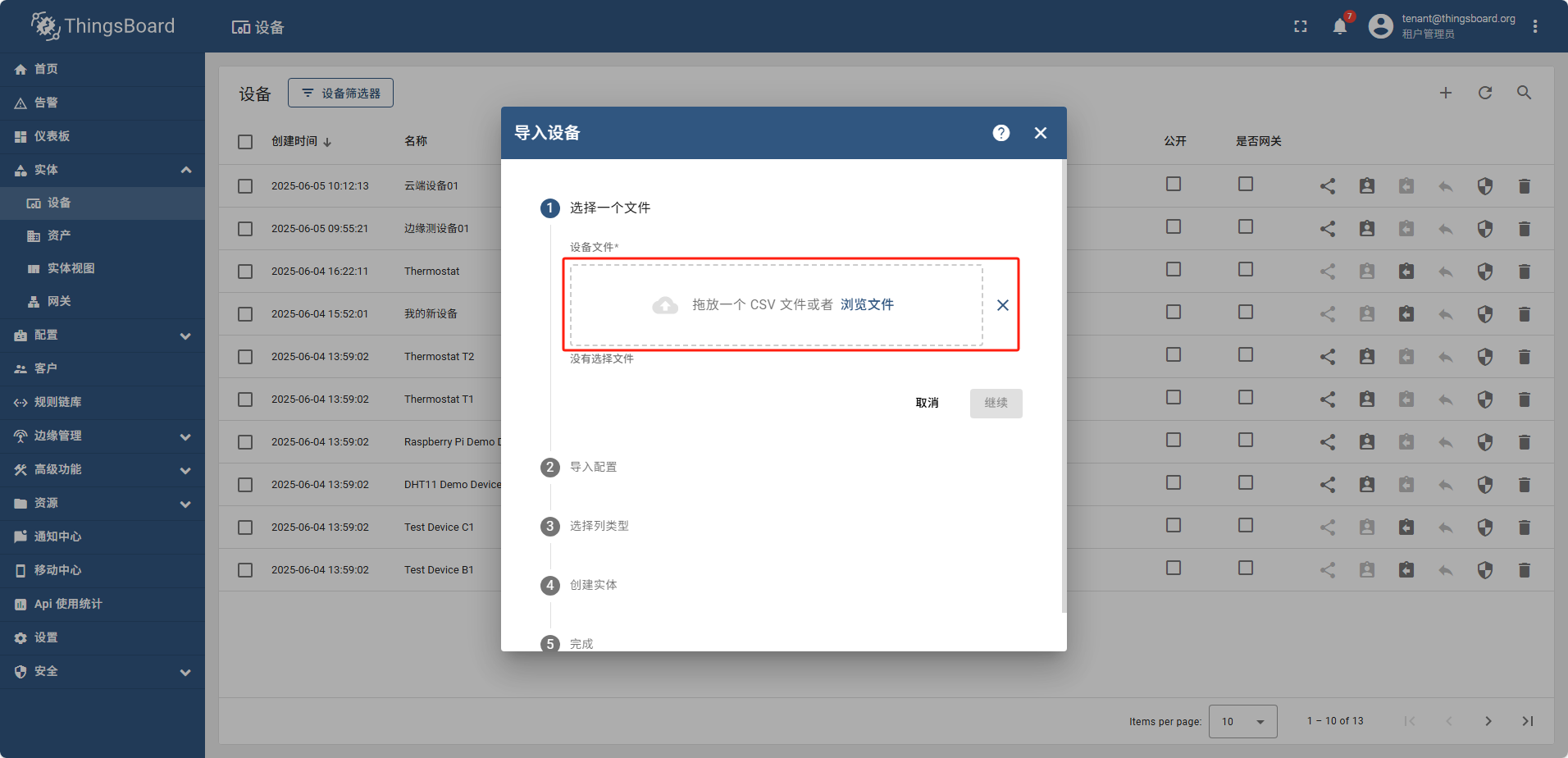

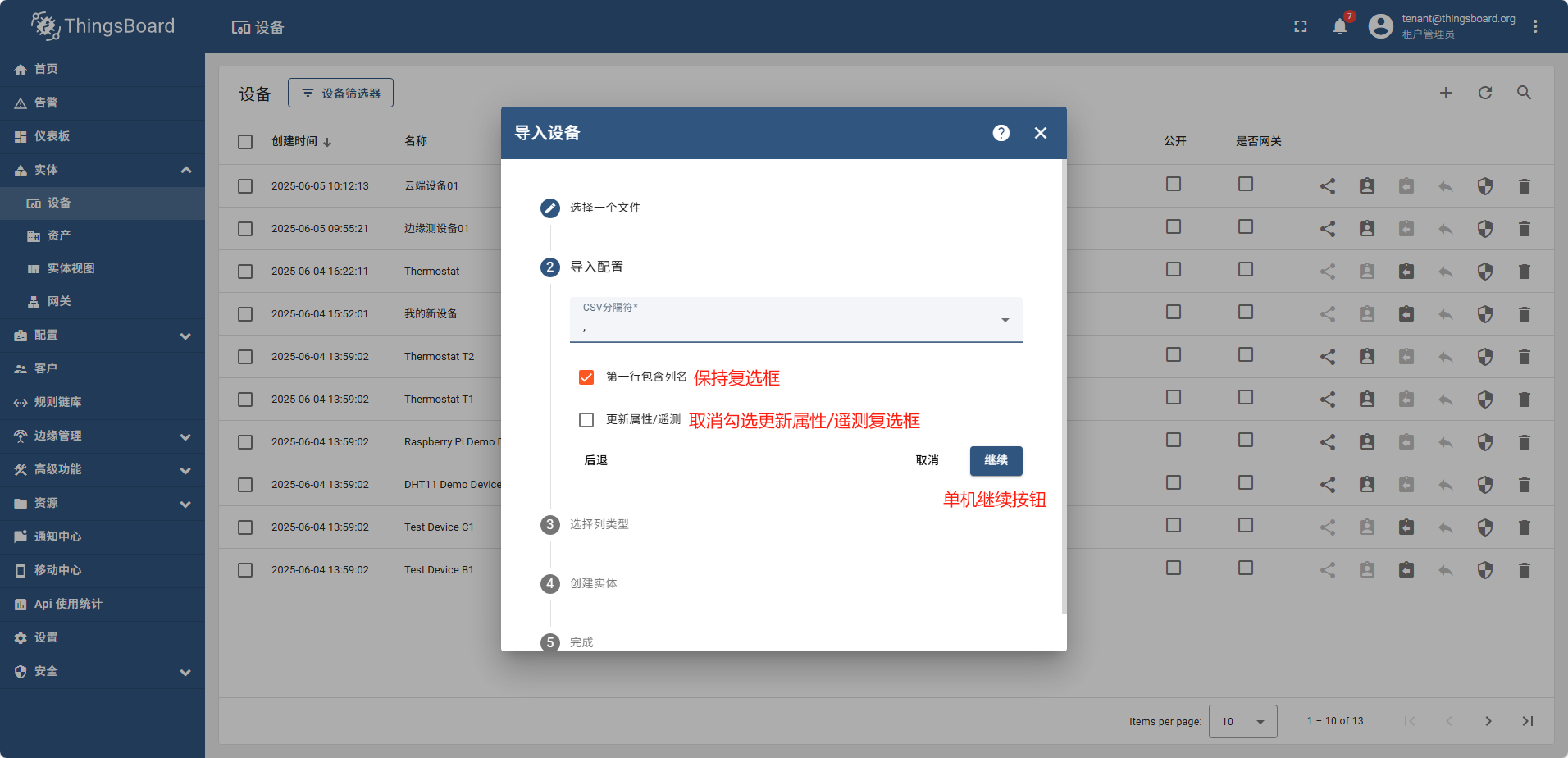

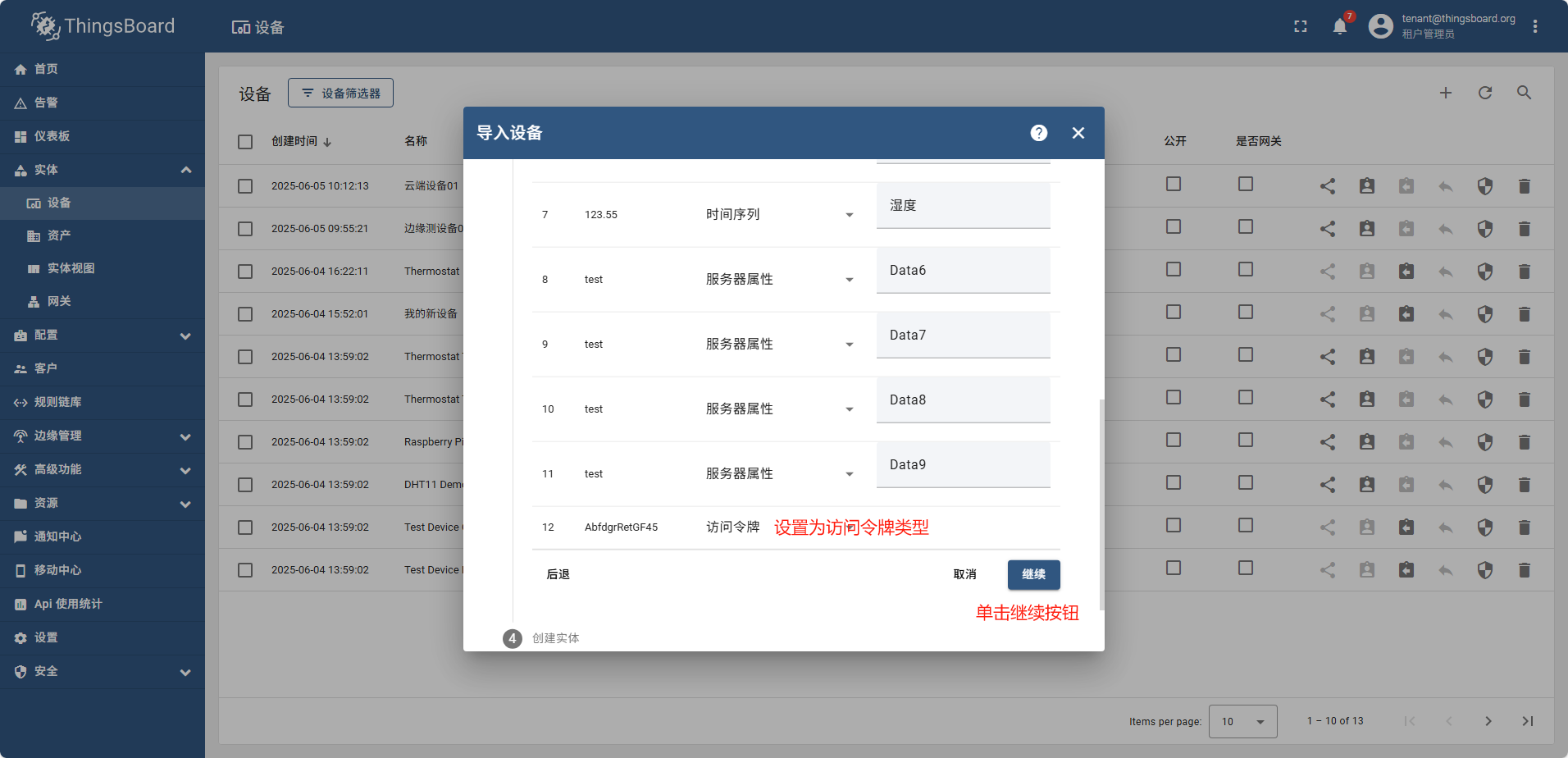

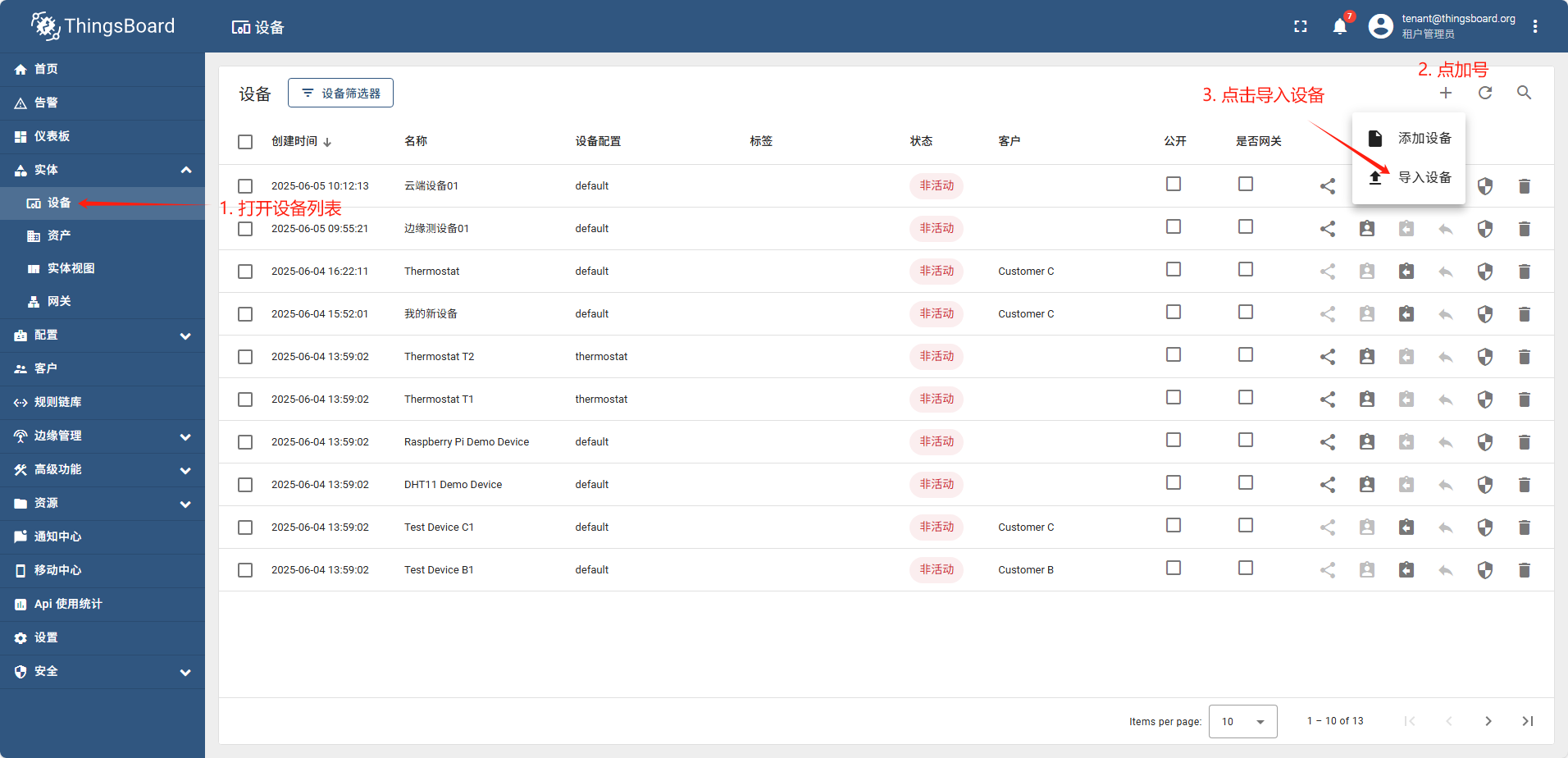

导入设备

准备测试数据： 新建csv文件，内容如下：

name,type,Data1,Data2,Data3,Data4,Data5,Data6,Data7,Data8,Data9,Data10
Device 1,testImport,123,test,TRUE,FALSE,123.55,test,test,test,test,AbfdgrRetGF45
Device 2,testImport,123,test,TRUE,FALSE,123.55,test,test,test,test,AbfdgrRetGF46
Device 3,testImport,123,test,TRUE,FALSE,123.55,test,test,test,test,AbfdgrRetGF47
Device 4,testImport,123,test,TRUE,FALSE,123.55,test,test,test,test,AbfdgrRetGF48
Device 5,testImport,123,,TRUE,FALSE,123.55,test,test,test,test,AbfdgrRetGF49
Device 6,testImport,123,test,TRUE,FALSE,123.55,test,test,test,test,AbfdgrRetGF50
Device 7,testImport,123,test,TRUE,FALSE,123.55,test,test,test,test,AbfdgrRetGF51
Device 8,testImport,123,test,TRUE,FALSE,123.55,test,test,test,test,AbfdgrRetGF52
Device 9,testImport,123,test,TRUE,FALSE,123.55,test,test,test,test,AbfdgrRetGF53
Device 10,testImport,123,test,TRUE,FALSE,123.55,test,test,test,test,AbfdgrRetGF54

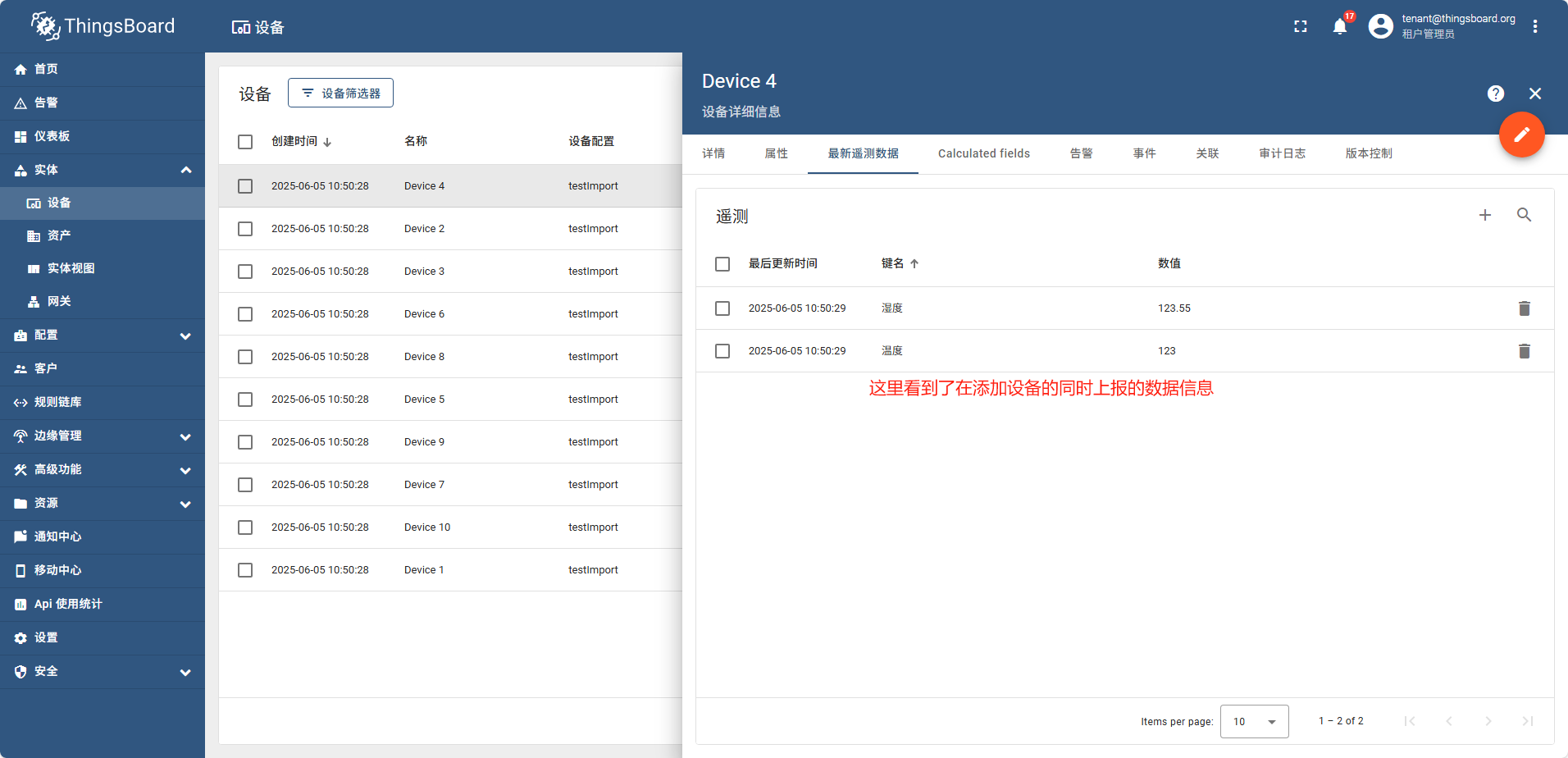

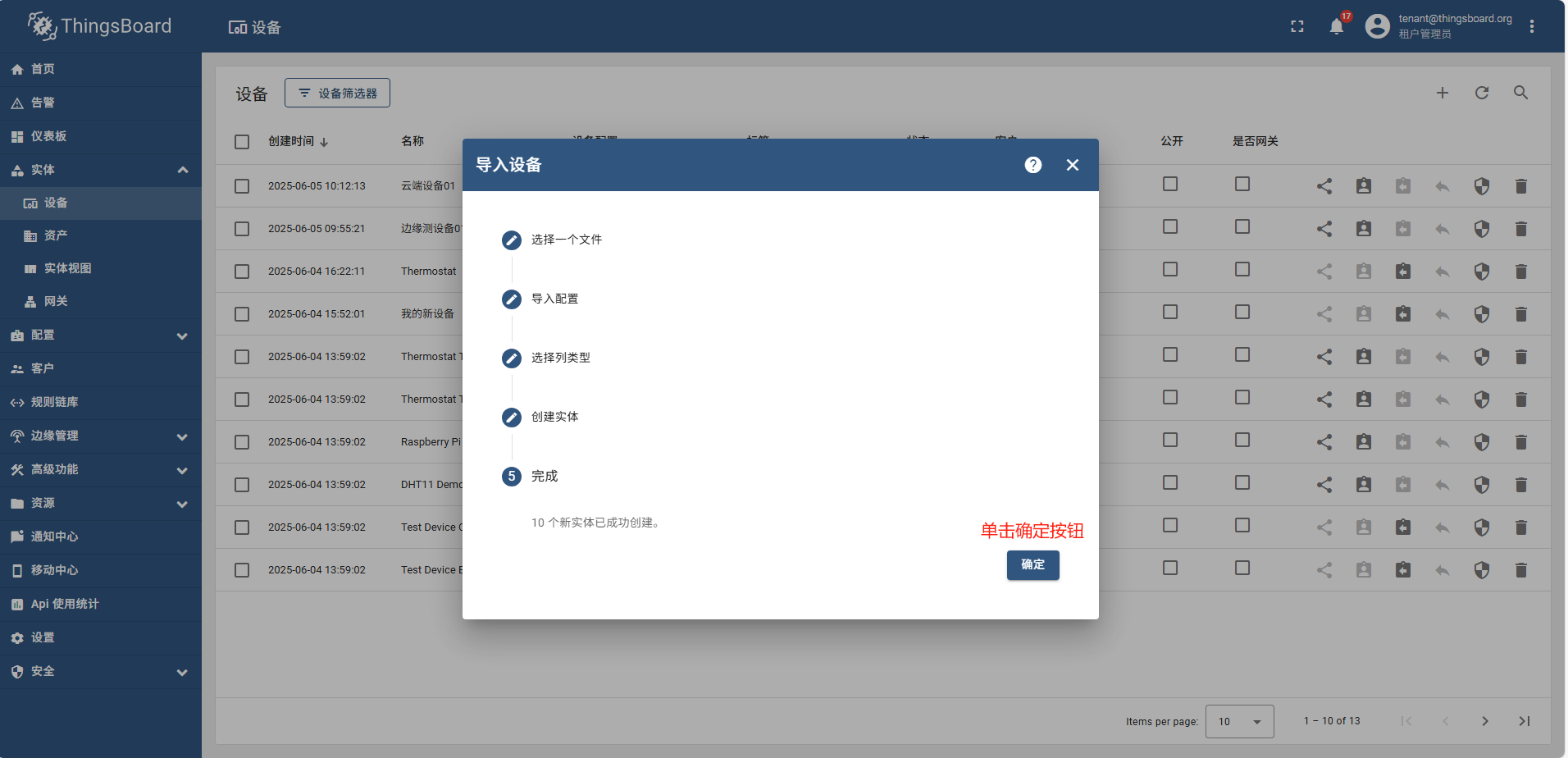

导入完成后，重新查看设备列表

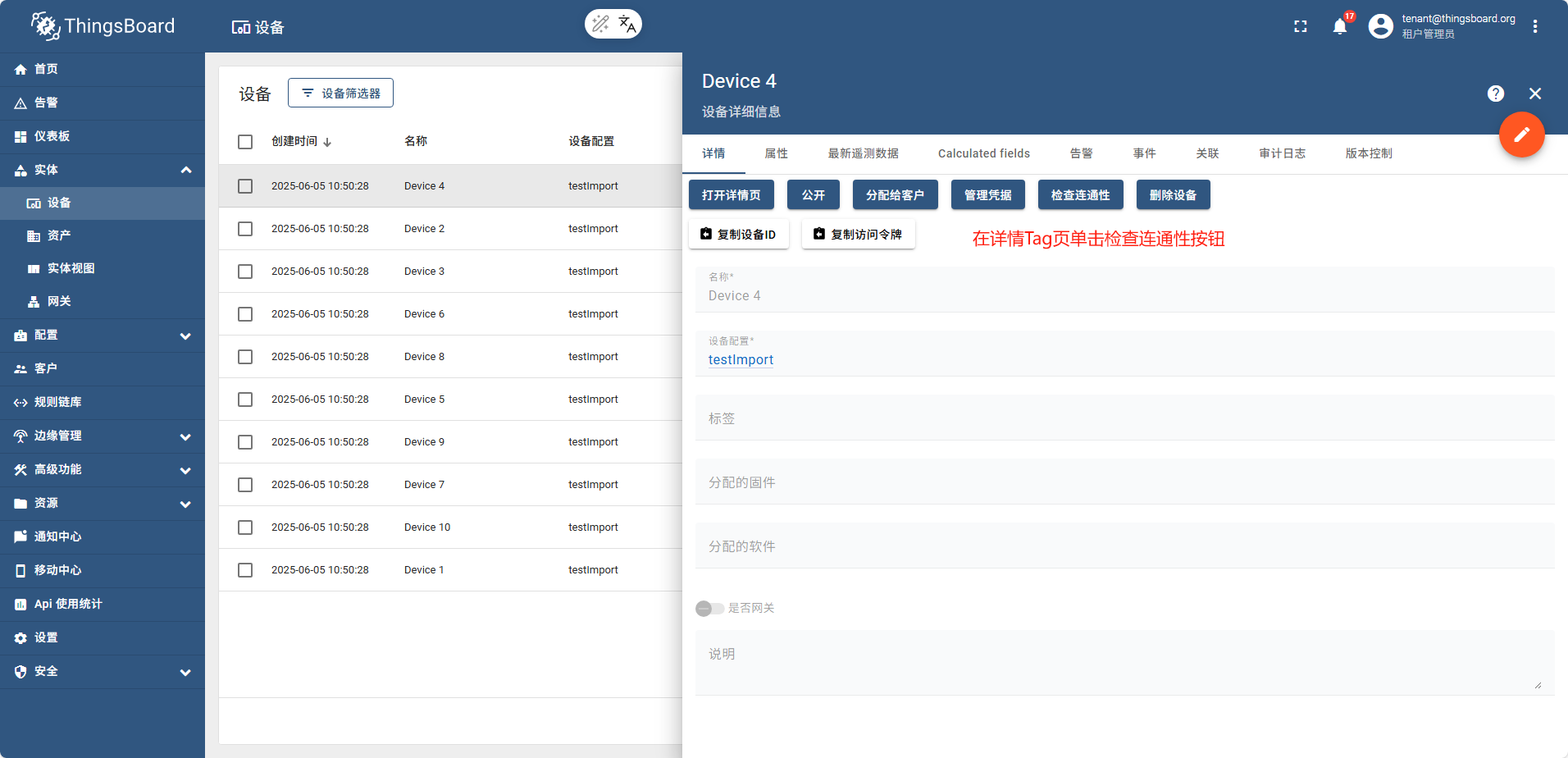

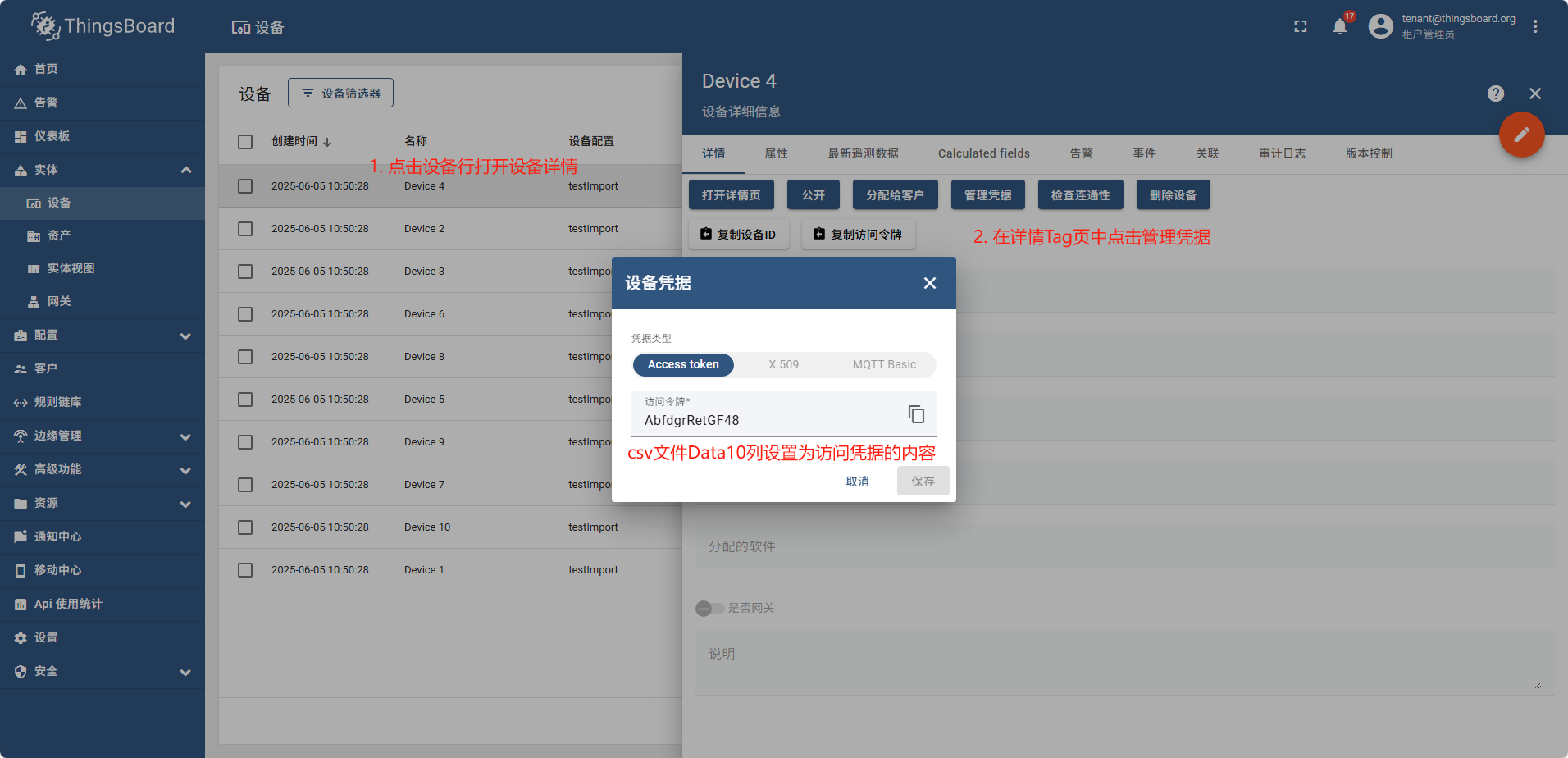

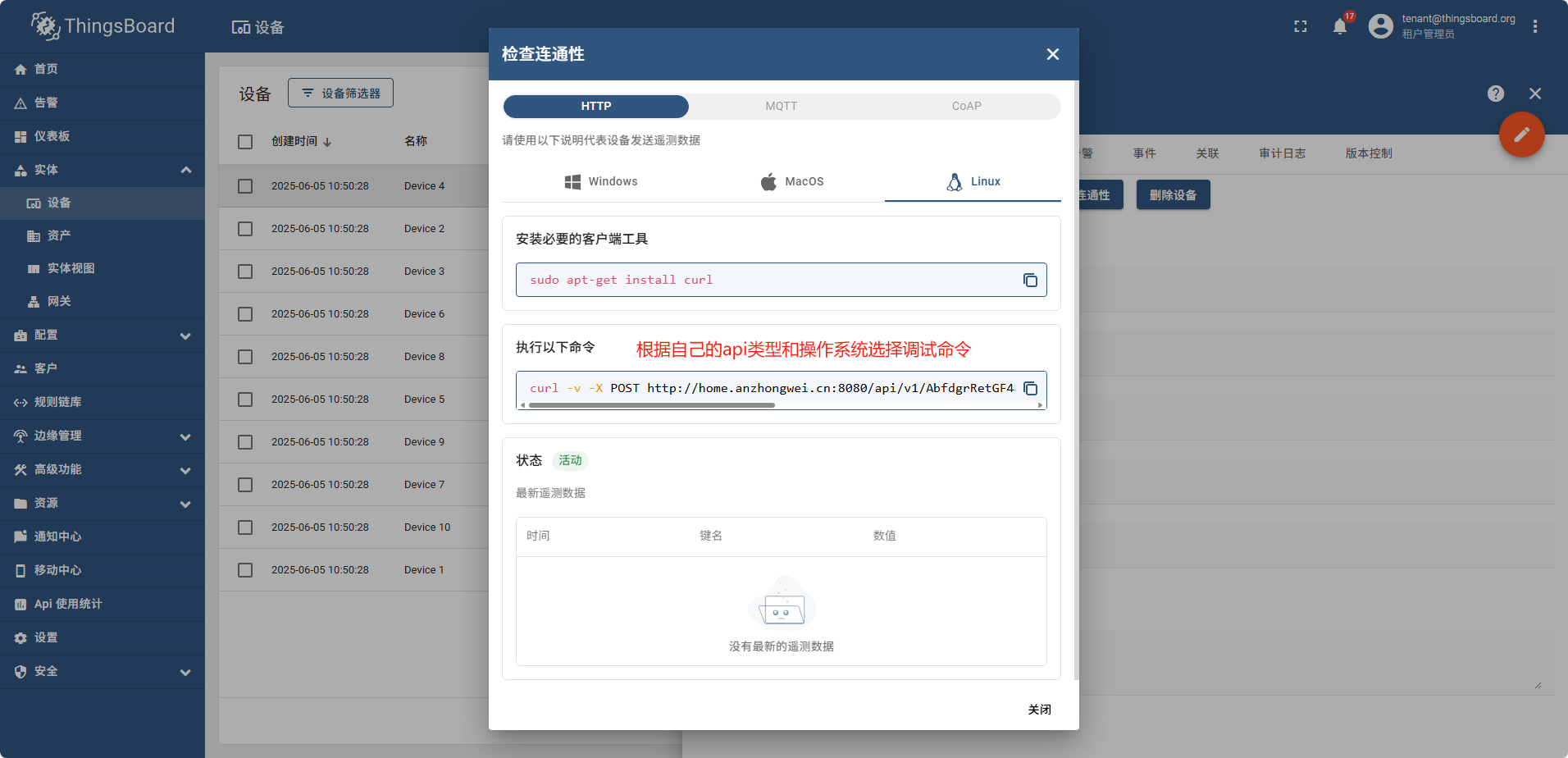

执行命令

# 注意这里我将json字符串的key改成了温度
curl -v -X POST http://demain:8080/api/v1/AbfdgrRetGF48/telemetry --header Content-Type:application/json --data "{温度:25}"

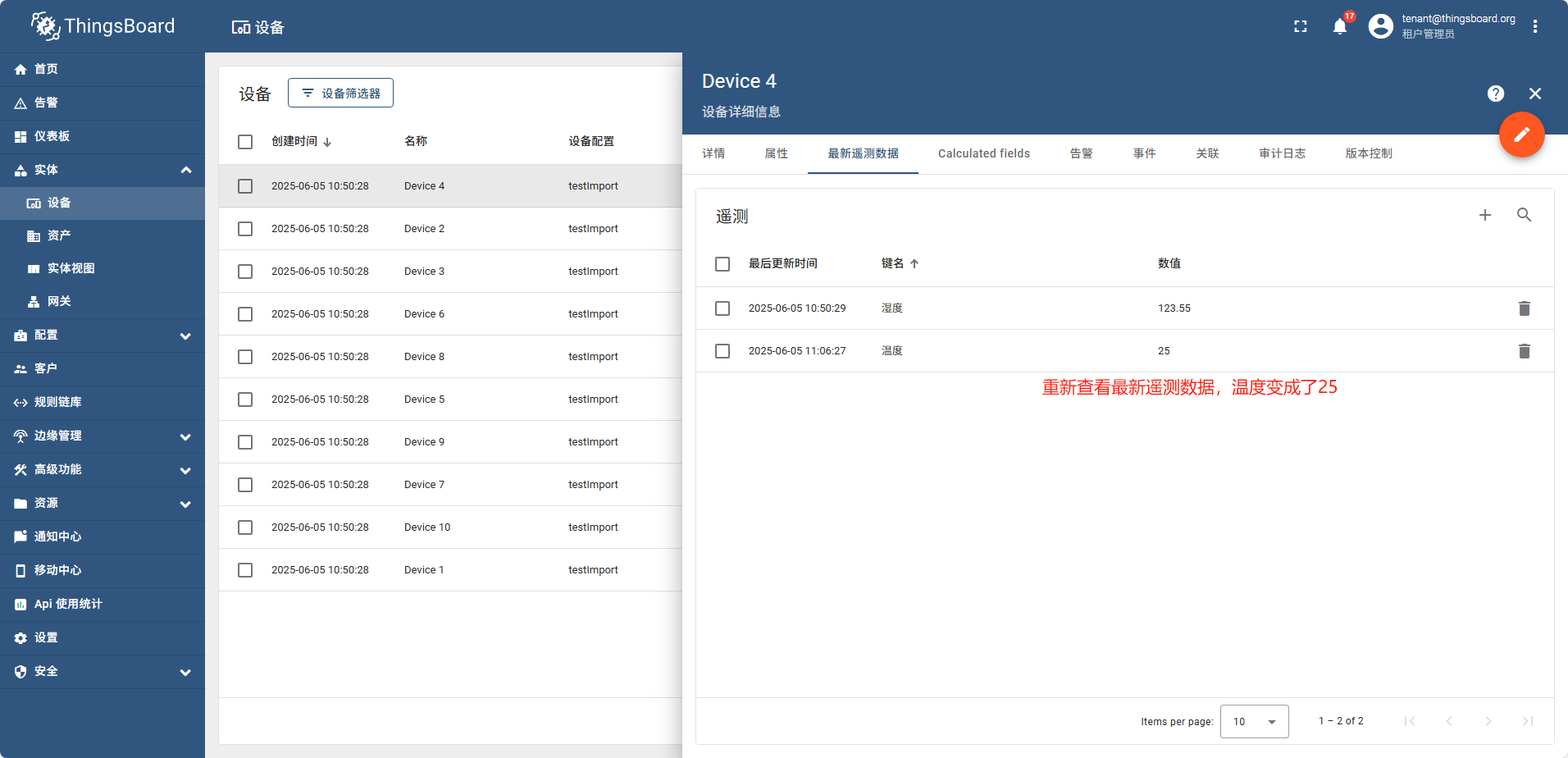

调用完成后，重新查看最新的遥测数据， 温度已经变成了我们api调用设置的值
