02边缘测

https://thingsboard.io/docs/edge/getting-started/

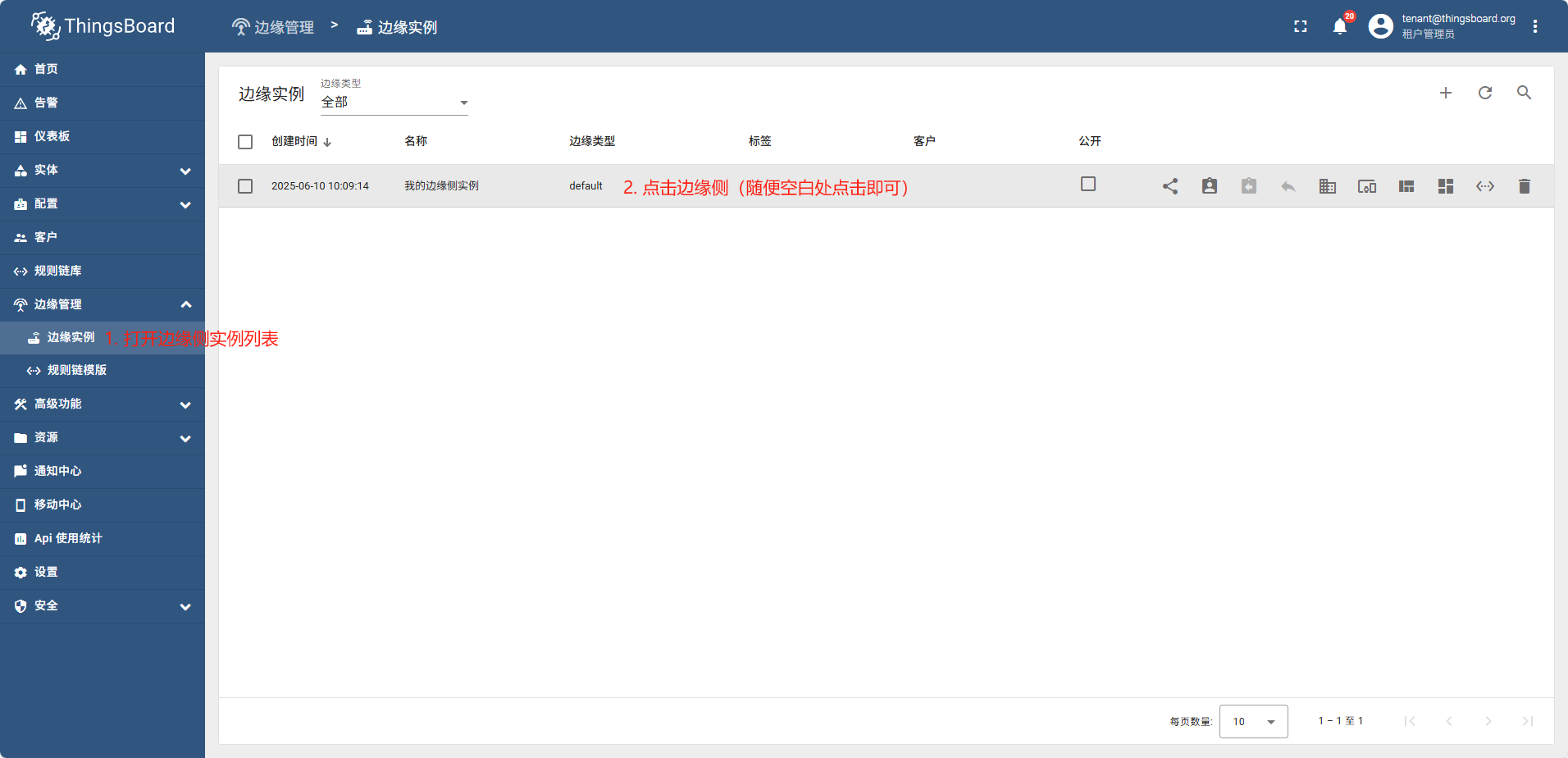

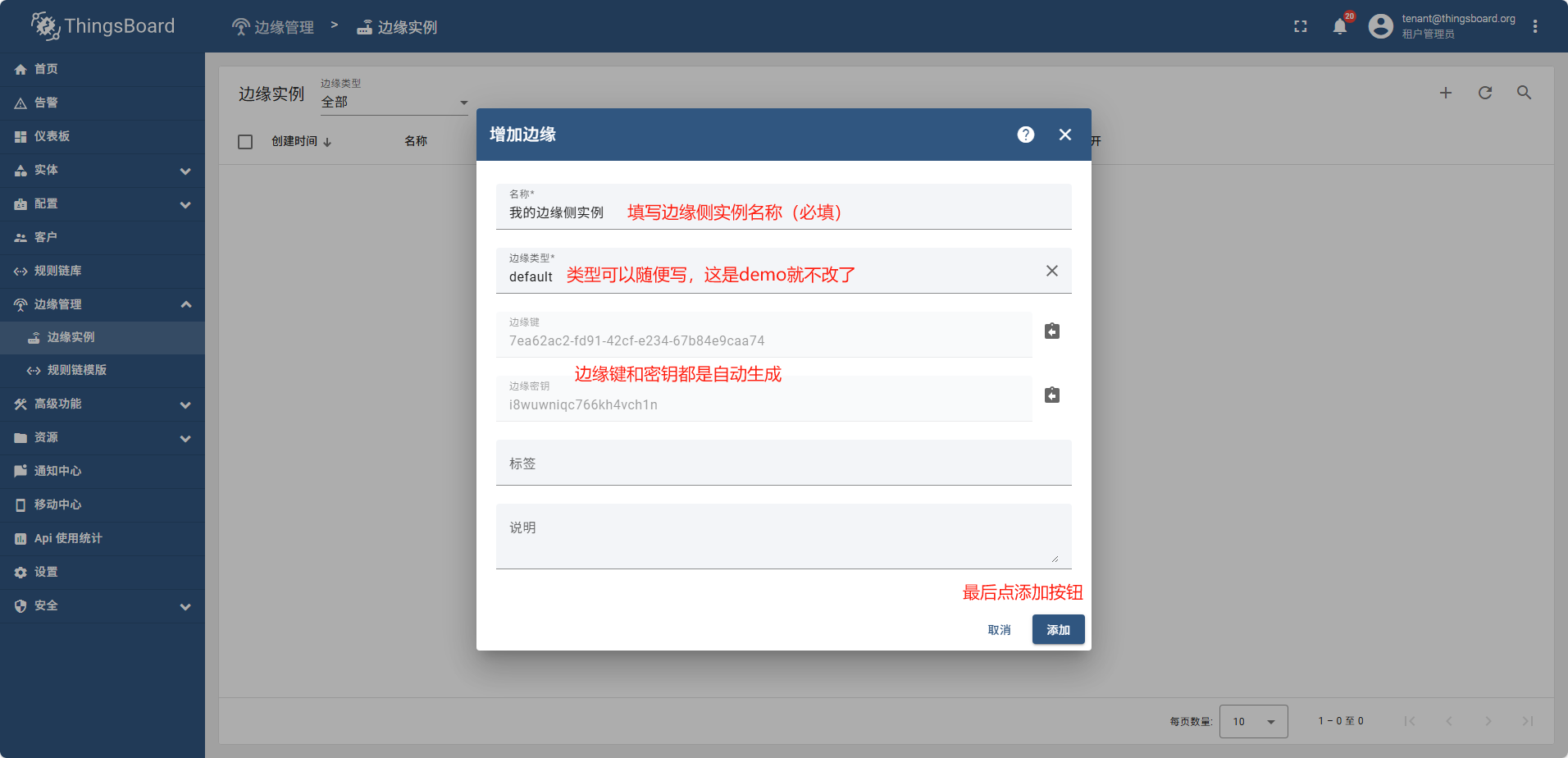

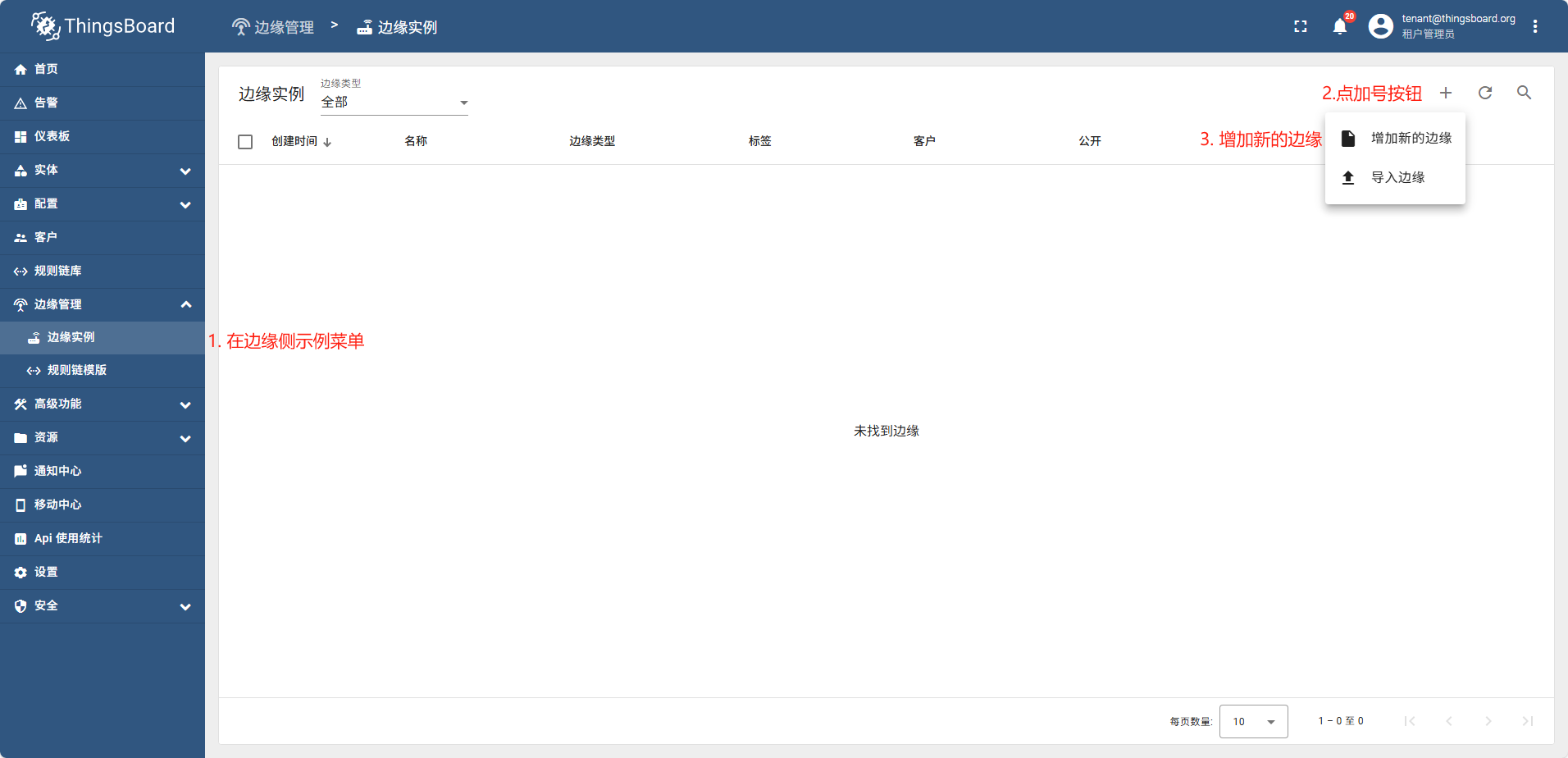

新增边缘实例

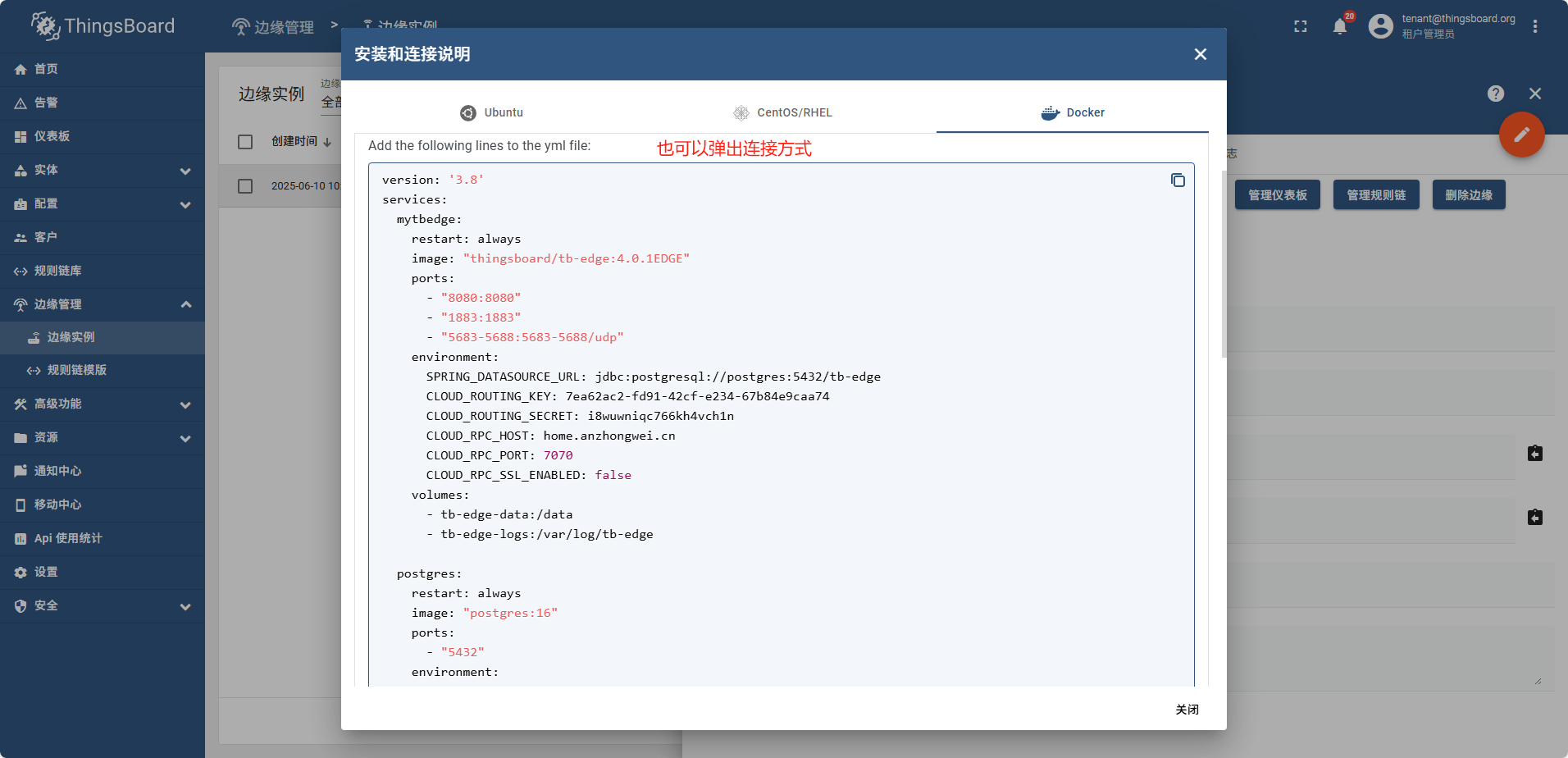

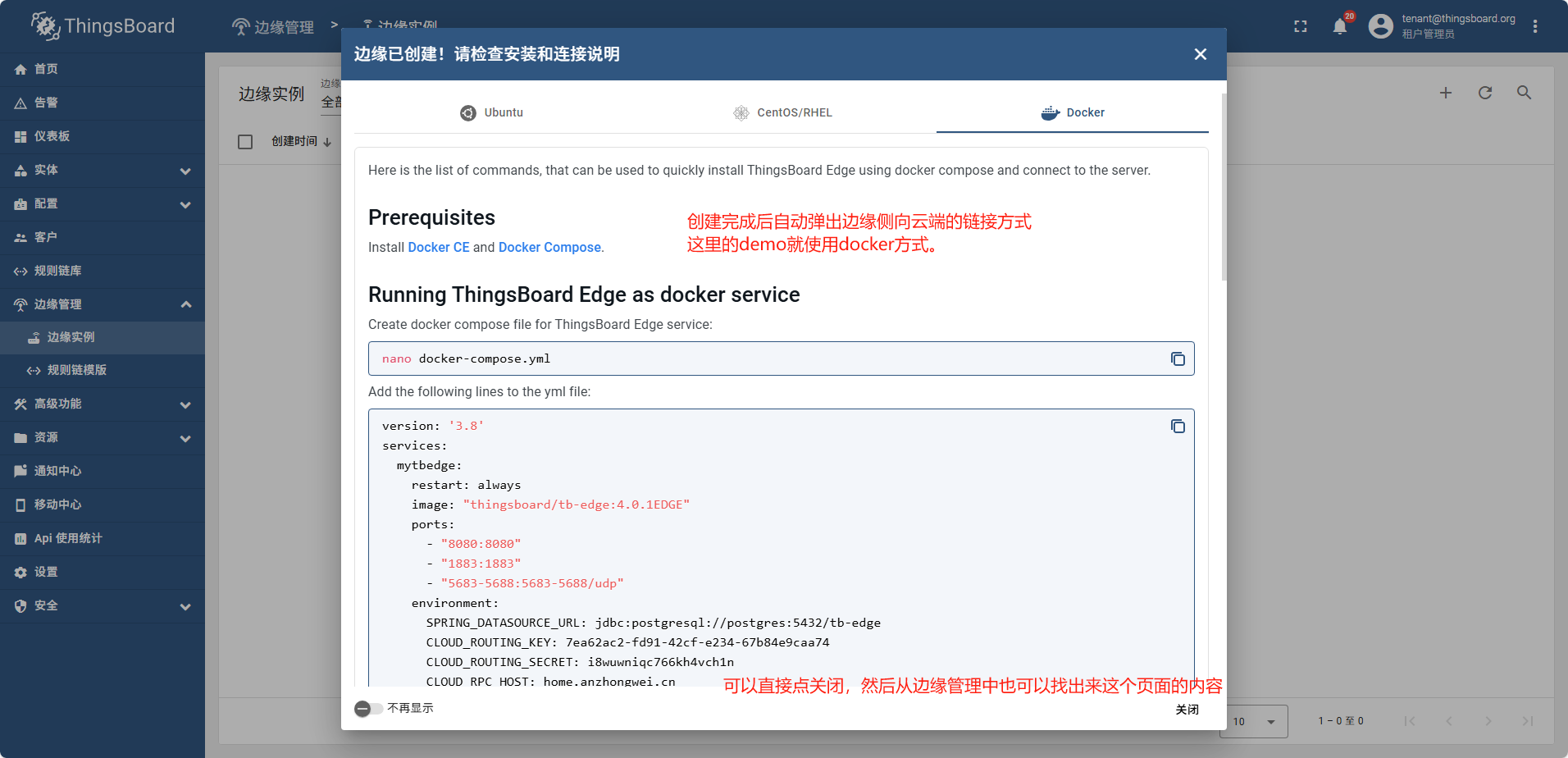

创建完成后弹出连接方式

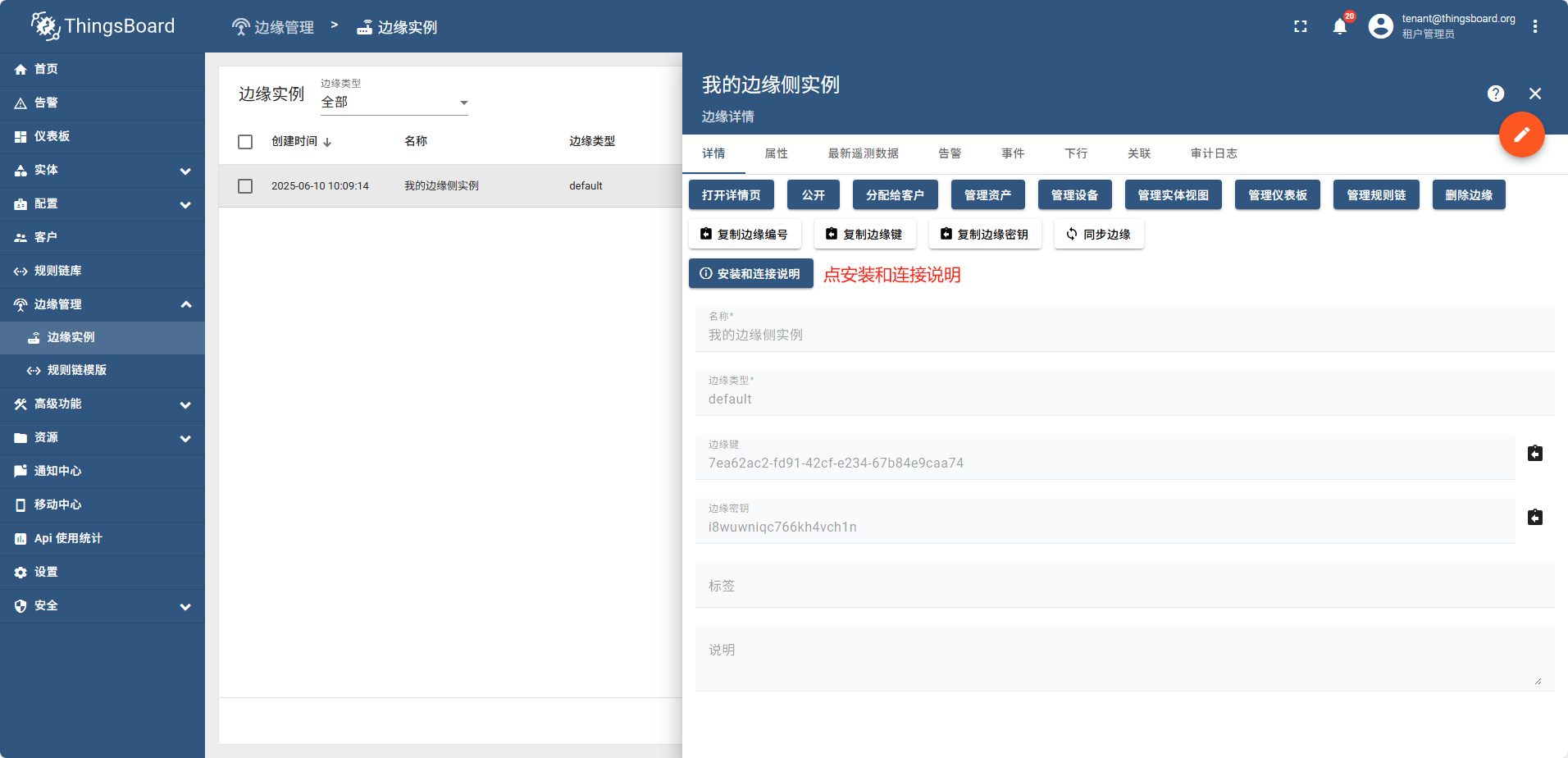

关闭连接方式弹窗后。再重新找到连接方式的弹窗

当边缘侧完成连接后，“安装和连接说明” 则变成了 “升级说明”

填写完表单后，此处以docker创建为例

复制docker tag中的docker-compose


services:
  mytbedge:
    restart: always
    image: "thingsboard/tb-edge:4.0.1EDGE"
    ports:
      - "8080:8080"
      - "1883:1883"
      - "5683-5688:5683-5688/udp"
    environment:
      SPRING_DATASOURCE_URL: jdbc:postgresql://postgres:5432/tb-edge
      CLOUD_ROUTING_KEY: 7ea62ac2-fd91-42cf-e234-67b84e9caa74
      CLOUD_ROUTING_SECRET: i8wuwniqc766kh4vch1n
      CLOUD_RPC_HOST: home.anzhongwei.cn
      CLOUD_RPC_PORT: 57070
      CLOUD_RPC_SSL_ENABLED: false
    volumes:
      - tb-edge-data:/data
      - tb-edge-logs:/var/log/tb-edge

  postgres:
    restart: always
    image: "postgres:16"
    ports:
      - "5432"
    environment:
      POSTGRES_DB: tb-edge
      POSTGRES_PASSWORD: postgres
    volumes:
      - tb-edge-postgres-data:/var/lib/postgresql/data

volumes:
  tb-edge-data:
    name: tb-edge-data
  tb-edge-logs:
    name: tb-edge-logs
  tb-edge-postgres-data:
    name: tb-edge-postgres-data
