网关

网关存在的目的是将已有的IOT系统数据采集到ThingsBoard平台（包括云服务和边缘服务）中

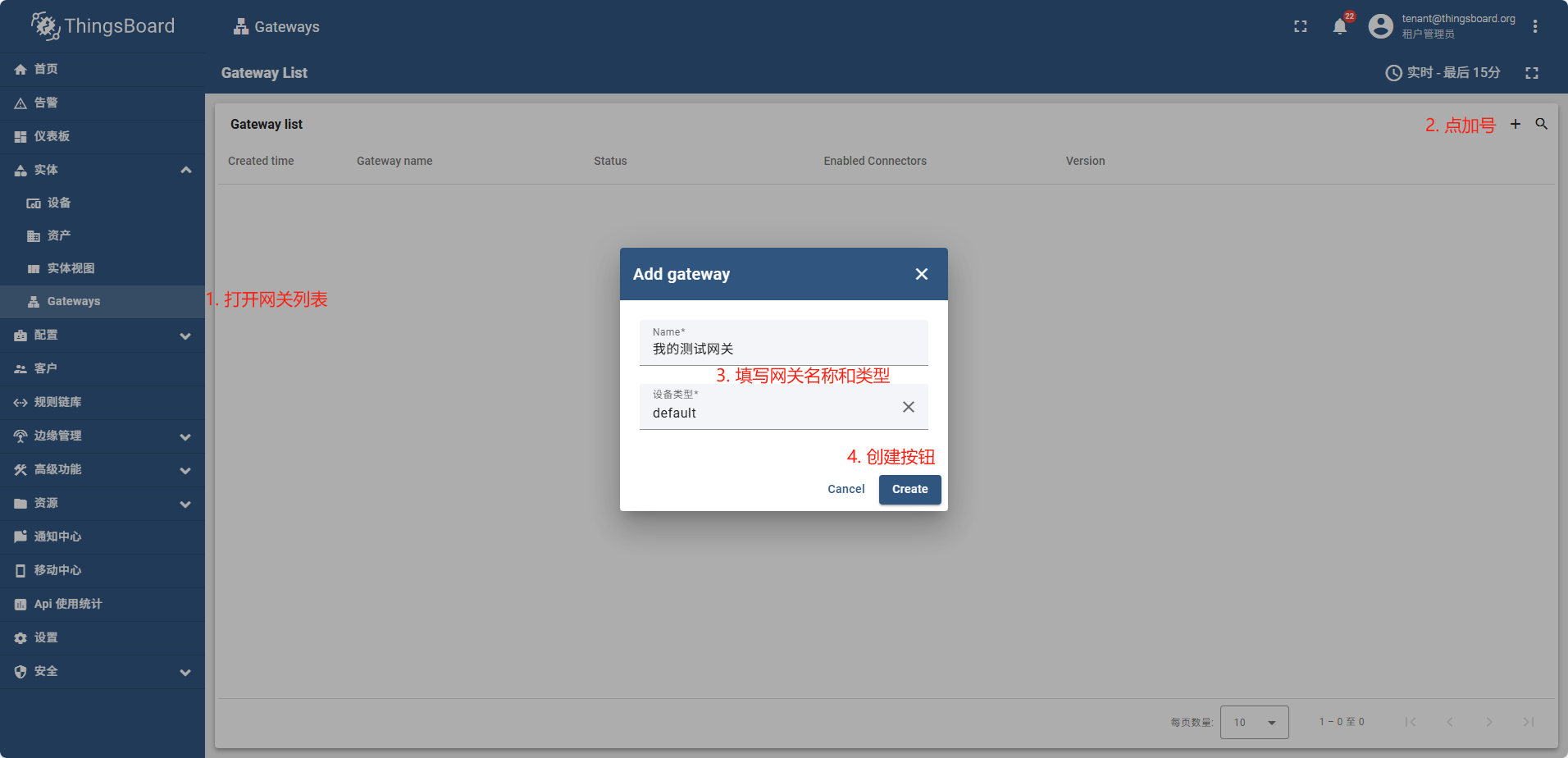

新建网关（云端）

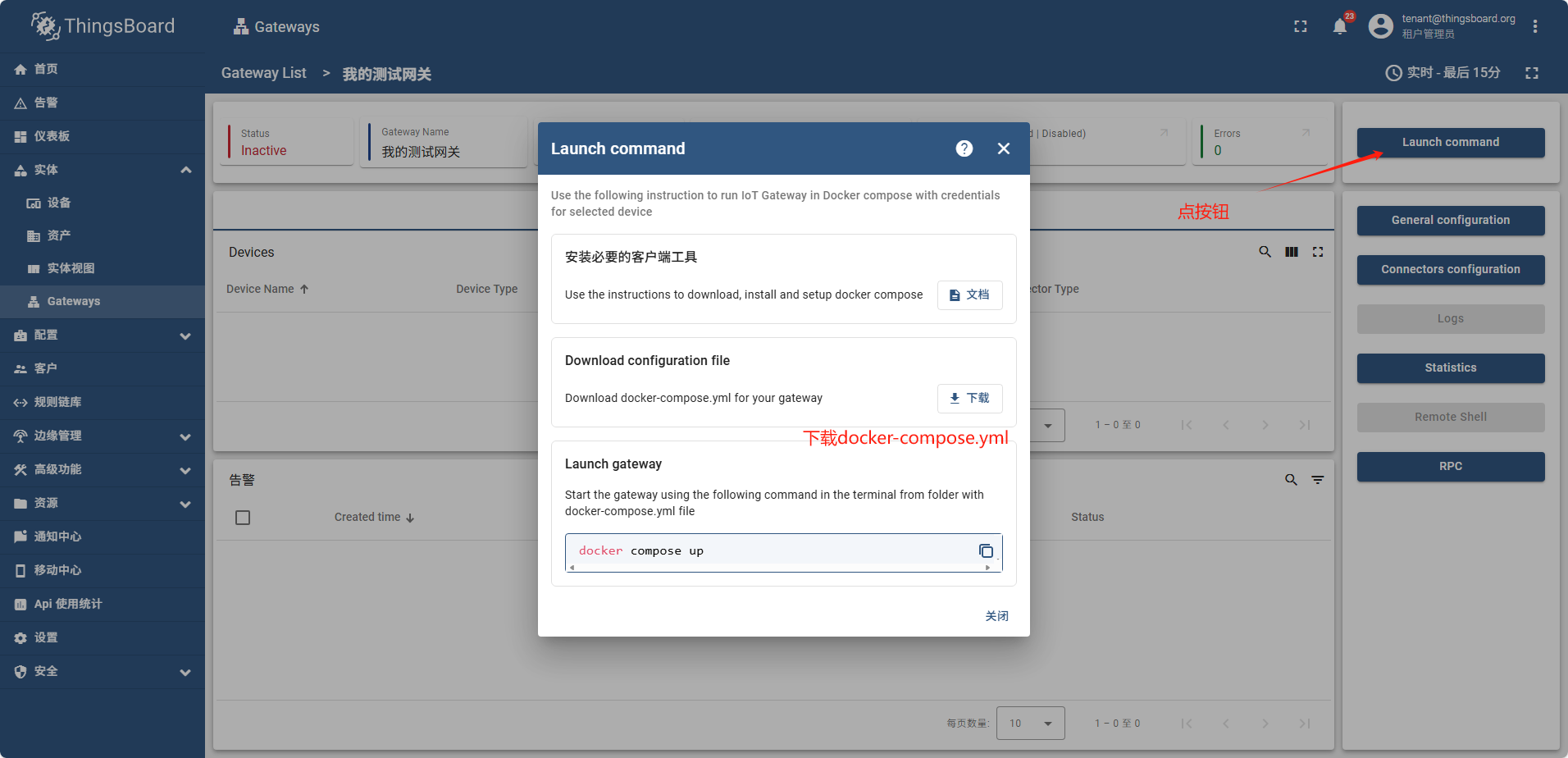

直接下载也可以，

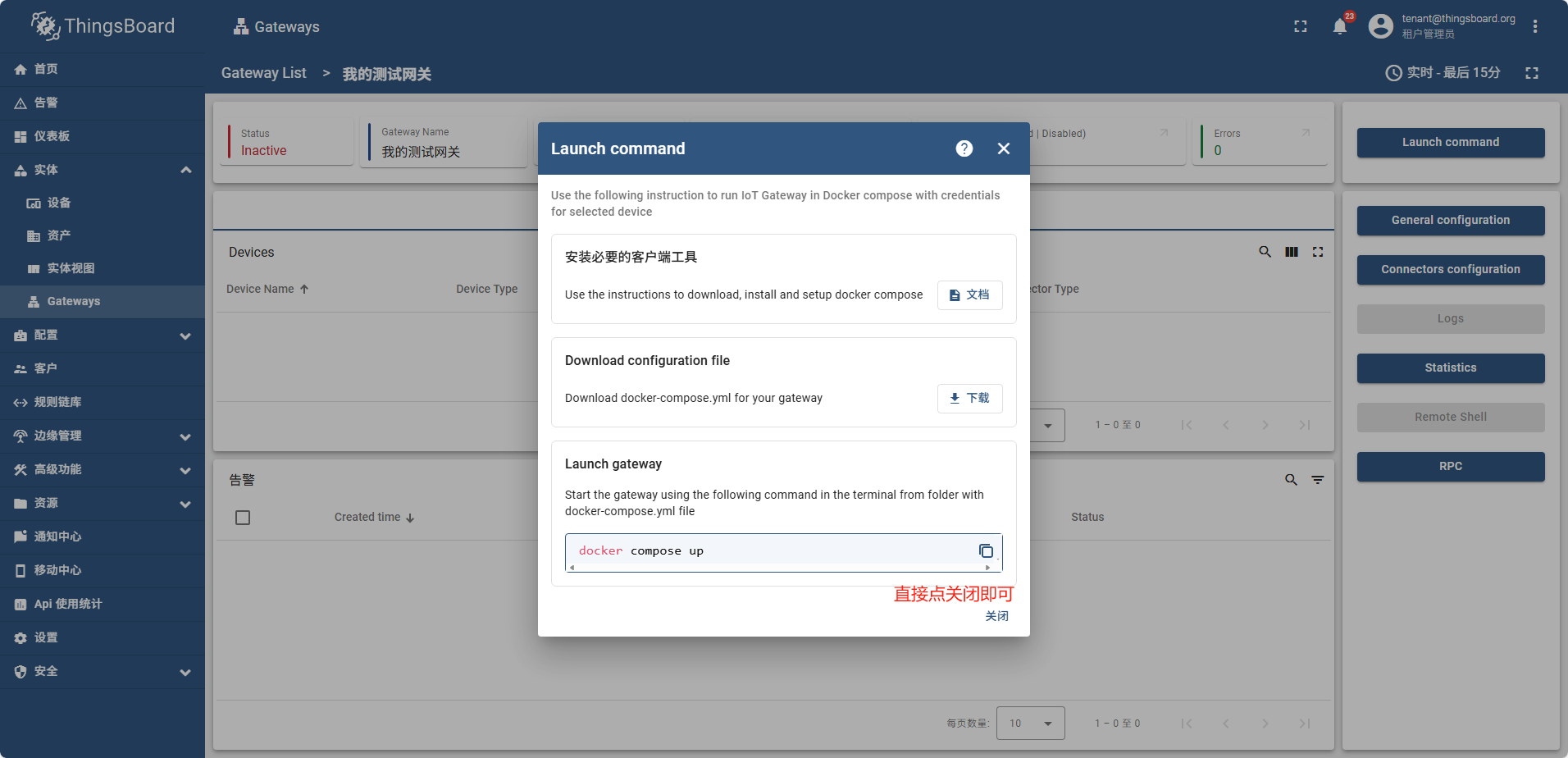

关闭后也可以再找到这个页面进行下载

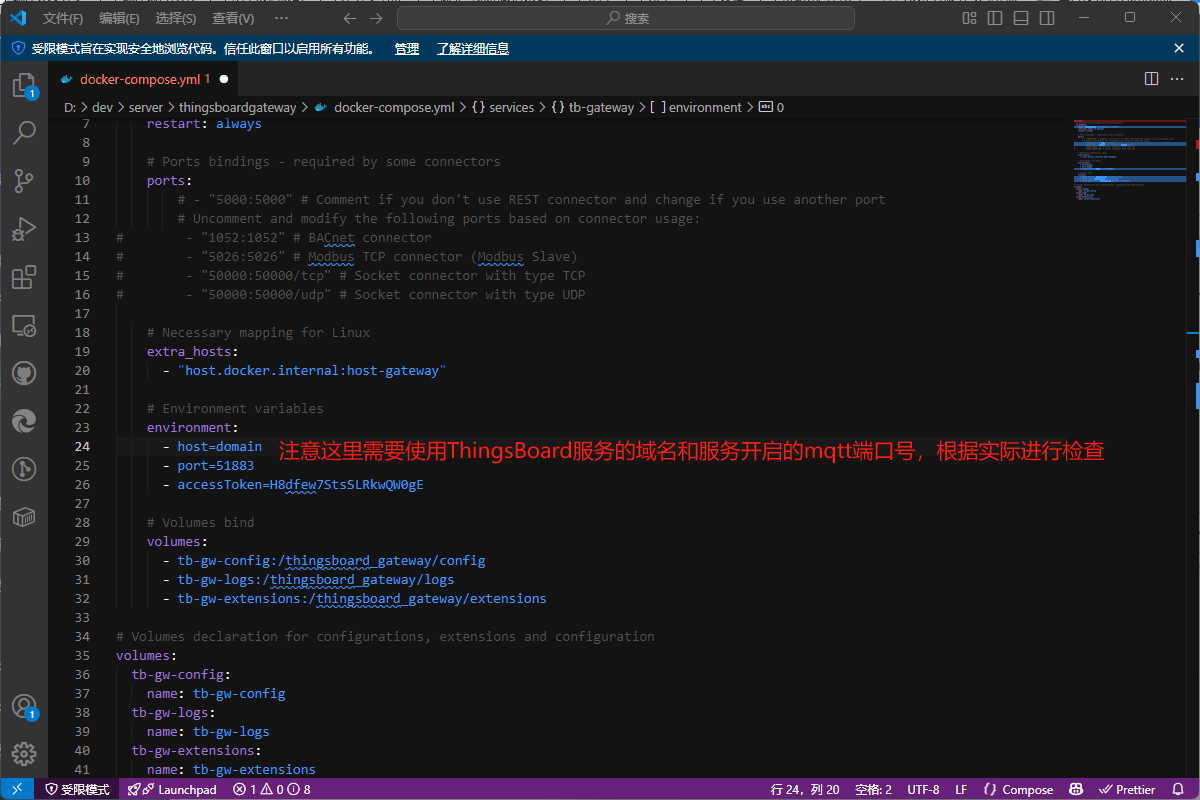

检查云端mqtt通信端口


services:
  # ThingsBoard IoT Gateway Service Configuration
  tb-gateway:
    image: thingsboard/tb-gateway:3.7-stable
    container_name: tb-gateway
    restart: always

    # Ports bindings - required by some connectors
    # ports:
        # - "5000:5000" # Comment if you don't use REST connector and change if you use another port
        # Uncomment and modify the following ports based on connector usage:
#        - "1052:1052" # BACnet connector
#        - "5026:5026" # Modbus TCP connector (Modbus Slave)
#        - "50000:50000/tcp" # Socket connector with type TCP
#        - "50000:50000/udp" # Socket connector with type UDP

    # Necessary mapping for Linux
    extra_hosts:
      - "host.docker.internal:host-gateway"

    # Environment variables
    environment:
      - host=home.anzhongwei.cn
      - port=51883
      - accessToken=H8dfew7StsSLRkwQW0gE

    # Volumes bind
    volumes:
      - tb-gw-config:/thingsboard_gateway/config
      - tb-gw-logs:/thingsboard_gateway/logs
      - tb-gw-extensions:/thingsboard_gateway/extensions

# Volumes declaration for configurations, extensions and configuration
volumes:
  tb-gw-config:
    name: tb-gw-config
  tb-gw-logs:
    name: tb-gw-logs
  tb-gw-extensions:
    name: tb-gw-extensions

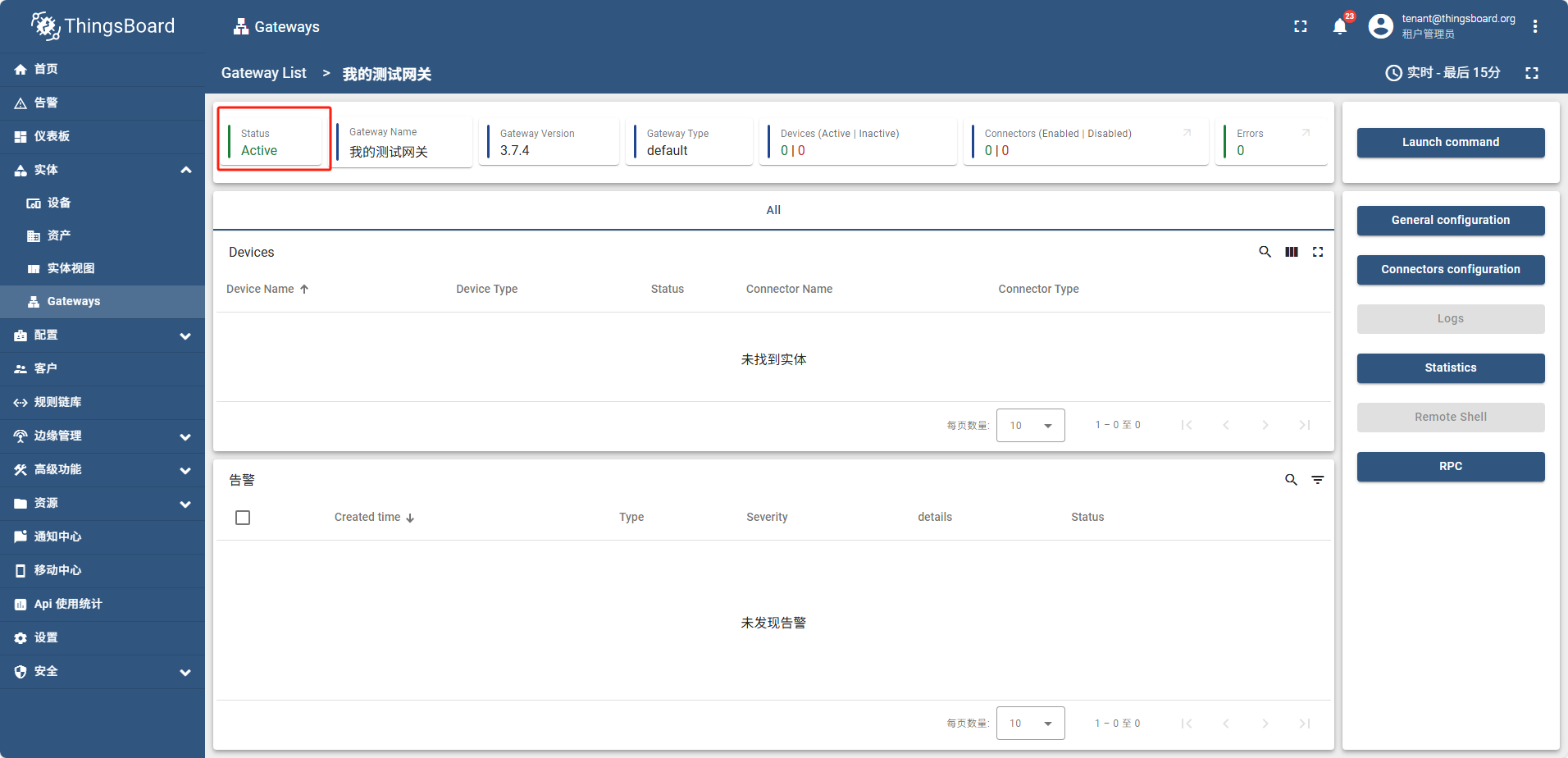

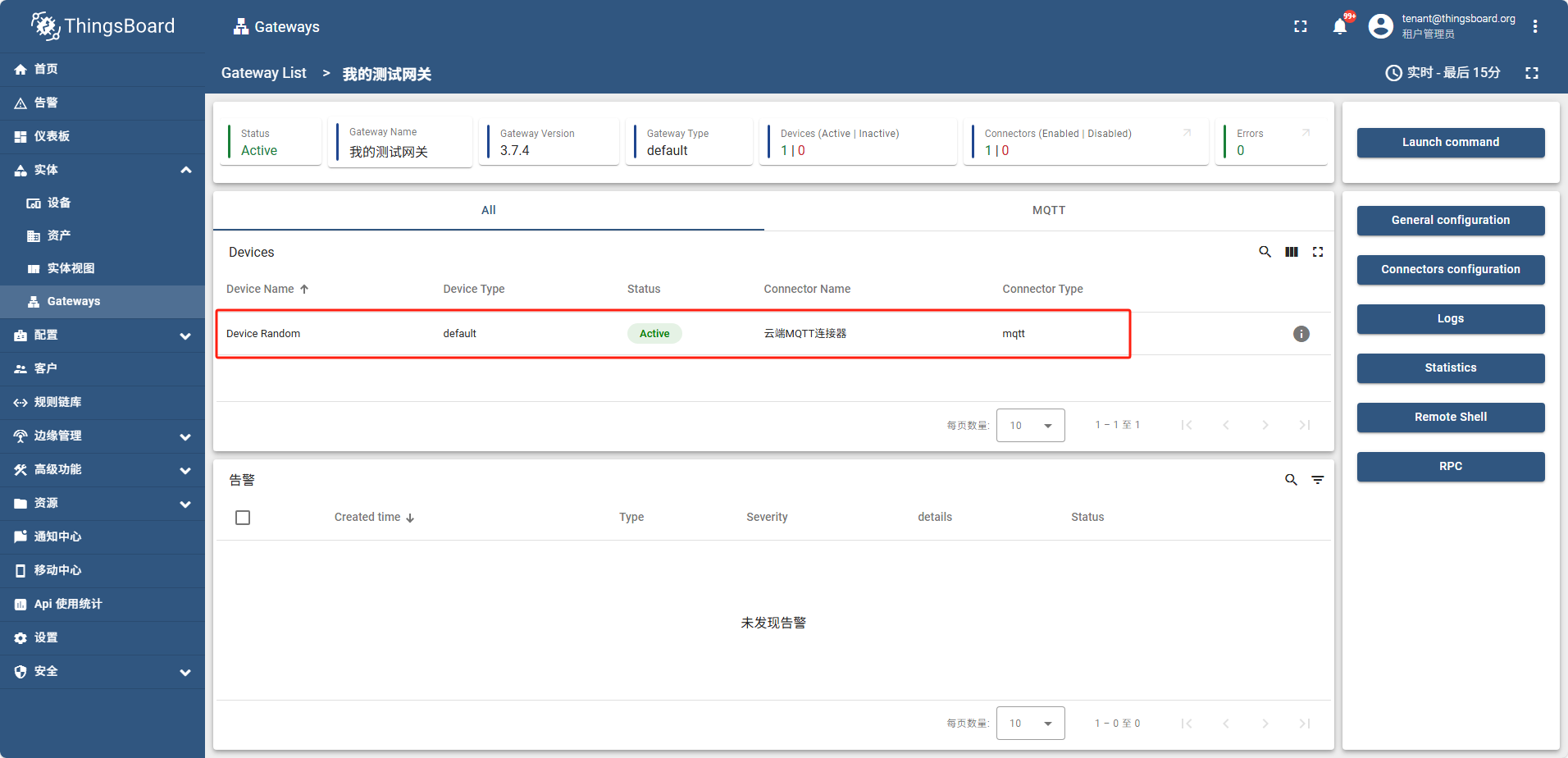

运行成功后，网关状态为活动的（Active）

新建网关（边缘）

边缘侧网关创建操作和在云端完全一致，唯一区别是启动时连接的mqtt的host地址是边缘侧mqtt的ip地址

因为是在docker内启动，即使是本机也需要使用宿主机的ip不能用localhost

version: '3.4'
services:
  # ThingsBoard IoT Gateway Service Configuration
  tb-gateway-edge:
    image: thingsboard/tb-gateway:3.7-stable
    container_name: tb-gateway-edge
    restart: always

    # Ports bindings - required by some connectors
    # ports:
    #     - "5000:5000" # Comment if you don't use REST connector and change if you use another port
        # Uncomment and modify the following ports based on connector usage:
#        - "1052:1052" # BACnet connector
#        - "5026:5026" # Modbus TCP connector (Modbus Slave)
#        - "50000:50000/tcp" # Socket connector with type TCP
#        - "50000:50000/udp" # Socket connector with type UDP

    # Necessary mapping for Linux
    extra_hosts:
      - "host.docker.internal:host-gateway"

    # Environment variables
    environment:
      - host=192.168.77.30  // 因为是在docker中启动，所以连接需要用ip，即使是本机也不能用localhost
      - port=1883
      - accessToken=opd2kpPHsS4EuChHe6zJ

    # Volumes bind
    volumes:
      - tb-gw-edge-config:/thingsboard_gateway/config
      - tb-gw-edge-logs:/thingsboard_gateway/logs
      - tb-gw-edge-extensions:/thingsboard_gateway/extensions

# Volumes declaration for configurations, extensions and configuration
volumes:
  tb-gw-edge-config:
    name: tb-gw-edge-config
  tb-gw-edge-logs:
    name: tb-gw-edge-logs
  tb-gw-edge-extensions:
    name: tb-gw-edge-extensions
